Description "Robbe Modellsport RO-CONTROL 4-50 V2 3-4S -50(70)A 5V/5A SWITCH BEC Regulator"
The ROBBE Ro-Control V2 series is the further development of the proven predecessor series. As before, it is an affordable and easy-to-use controller series for brushless motors.
Thanks to the use of high-quality SMD components, the internal resistance of the controllers is particularly low. Thanks to the high clock frequency, the Ro-Control V2 controllers have a very sensitive control response. All controllers have an adjustable brake with reverse function, battery type selection, timing setting, undervoltage cut-off, temperature and overcurrent protection, soft start and a search mode. Naturally, the entire series is equipped with effective start-up protection if the throttle stick on the transmitter is not set to motor-off when switching on.
Thanks to the use of high-quality SMD components, the internal resistance of the controllers is particularly low. Thanks to the high clock frequency, the Ro-Control V2 controllers have a very sensitive control response. All controllers have an adjustable brake with reverse function, battery type selection, timing setting, undervoltage cut-off, temperature and overcurrent protection, soft start and a search mode. Naturally, the entire series is equipped with effective start-up protection if the throttle stick on the transmitter is not set to motor-off when switching on.
Technical data
Cells: | 3-4LiPo |
---|---|
Dauer Strom (A): | 50 |
Max Strom (A): | 70 |
Weight (g): | 36 |
BEC: | 5V/5A |
Length (mm): | 60 |
Type: | Brushless |
Wide (mm): | 25 |
Height (mm): | 8 |
BEC oder OPTO: | BEC |

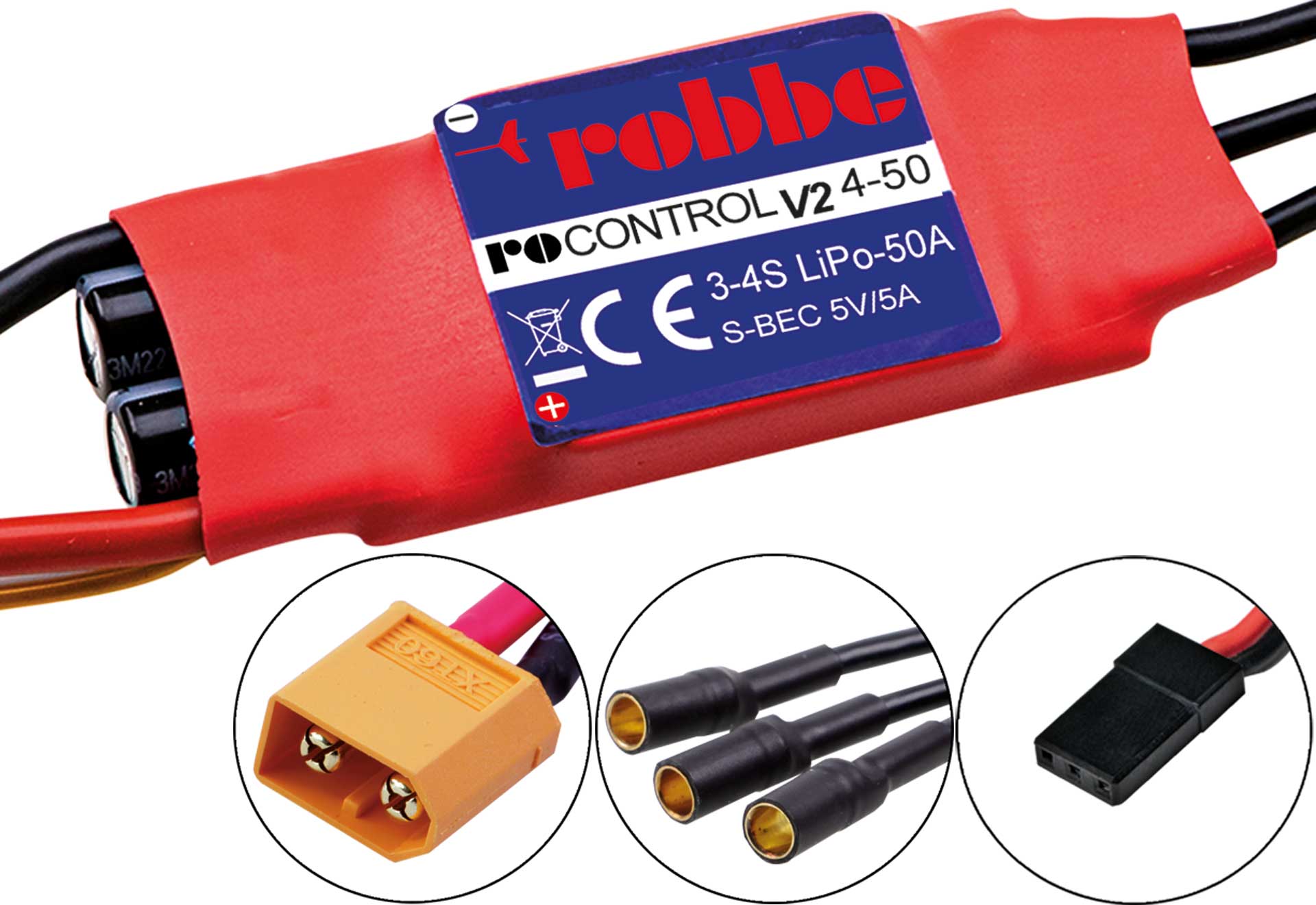

Box contents
- Ro-Control 4-50 V2
- Plug battery side: XT-60
- Plug motor side: 3,5mm gold contact
- printed manual in DE
- Instructions EN / FR for download
