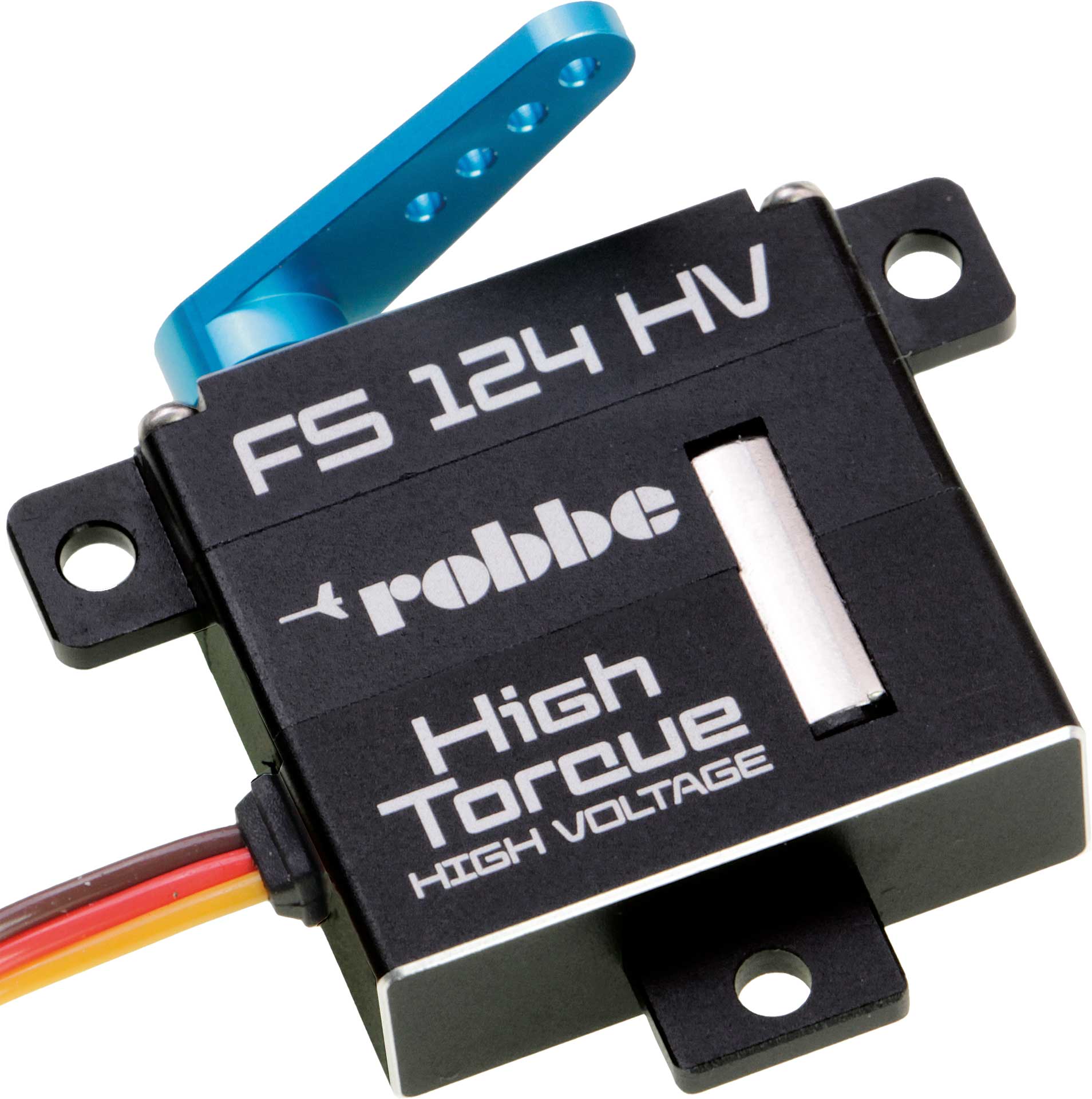

Robbe Modellsport FS 124 BB MG HV digital wing servo Dimensionally compatible X10 Mini, with soft start

Product number: 9125
GTIN/EAN: 9010189260172

€44.99*

In stock. Usually ships within 1 business day.

Description "Robbe Modellsport FS 124 BB MG HV digital wing servo Dimensionally compatible X10 Mini, with soft start"
The Robbe FS 124 BB MG HV Digital is an extraordinarily strong, robust and flat surface servo in a compact, CNC milled aluminium housing. It has a stable and backlash-free metal gear and ball bearings on the output. The FS 124 BB MG HV has an enormously high actuating force of 8,5kg/cm at 8.4 volts and can therefore be used in electric and glider models up to 5m wingspan on ailerons and flaps. But also in modern hotliners, where high forces are required, it can be used with its small dimensions.
The soft start function should also be emphasized. Cable length approx. 220mm

The Robbe FS servos are high-quality and precisely manufactured rowing machines for the RC sector. Due to the high production standard and the resulting processing quality, you achieve maximum power, speed, reliability and positioning accuracy. The Robbe FS servo series impresses with its exceptionally good price-performance ratio.

Technical data
Bearing: ••
Servo Speed sec./60° (4,8V) HV: 0,14
Servo Speed sec./60° (6V) HV: 0,12
Servo Speed sec./60° (7,4V) HV: 0,1
Servo Speed sec./60° (8,4V) HV: 0,09
Servo Torque kg/cm (4,8V) HV: 5,4
Servo Torque kg/cm (6V) HV: 6,2
Servo Torque kg/cm (7,4V) HV: 7,5
Servo Torque kg/cm (8,4V) HV: 8,5
Gearbox Type: Metal
Weight (g): 25,7

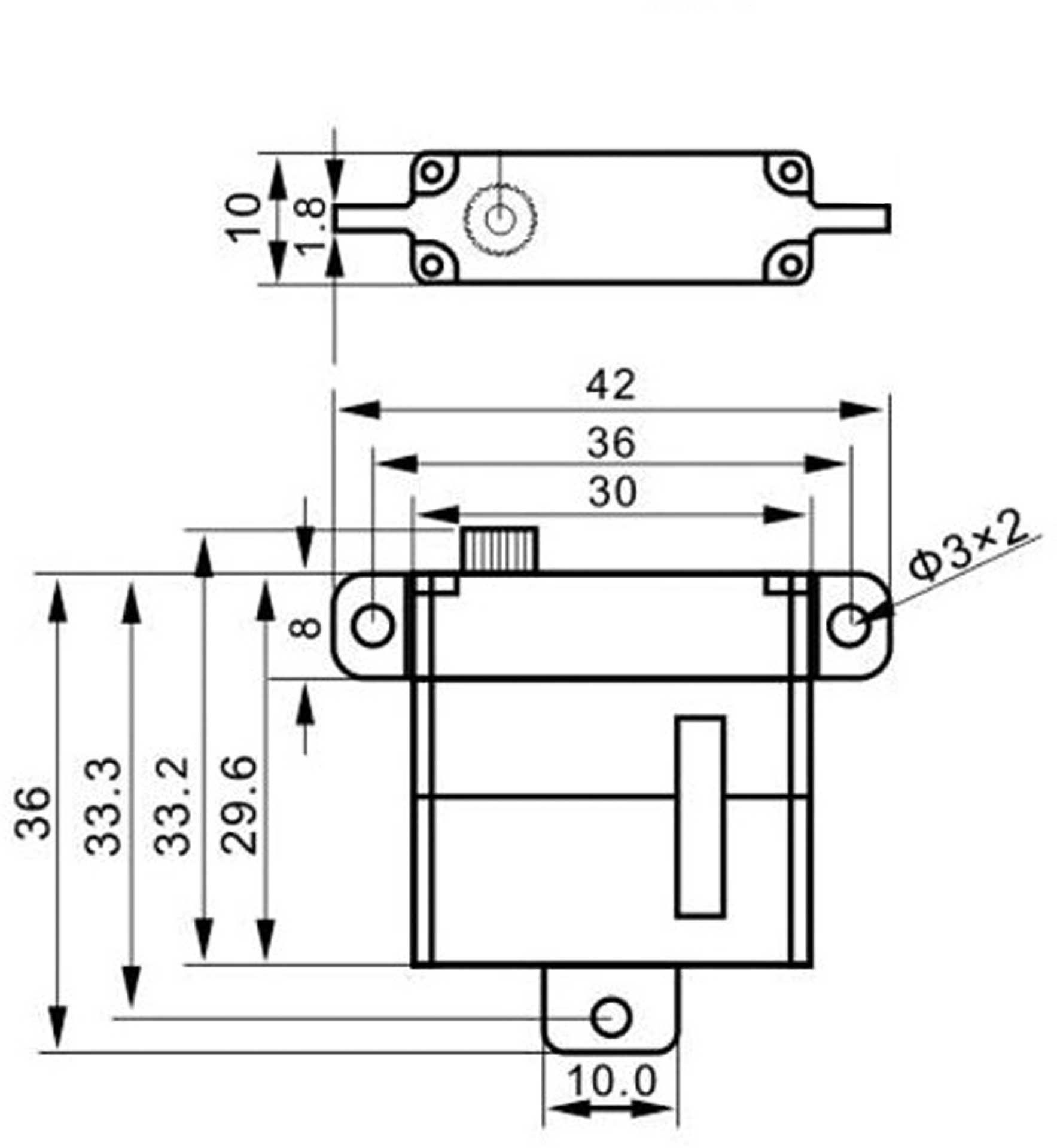

Length (mm): 30
Wide (mm): 10
Height (mm): 23
Servo type: High Voltage
Gear tooth: 25Z/4,9mm
Betriebspannung (V) HV: 4,8 - 8,4
