Robbe Modellsport EVOA 3.0 ARF VOLL-GFK "glider" HIGH PERFORMANCE GLIDER WITH 4-FLAP WING

Product number: 2692
GTIN/EAN: 9010189253266

€989.99*

Product has been ordered but unknown delivery date.

Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Mid_EVOA_Details_Segler
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP

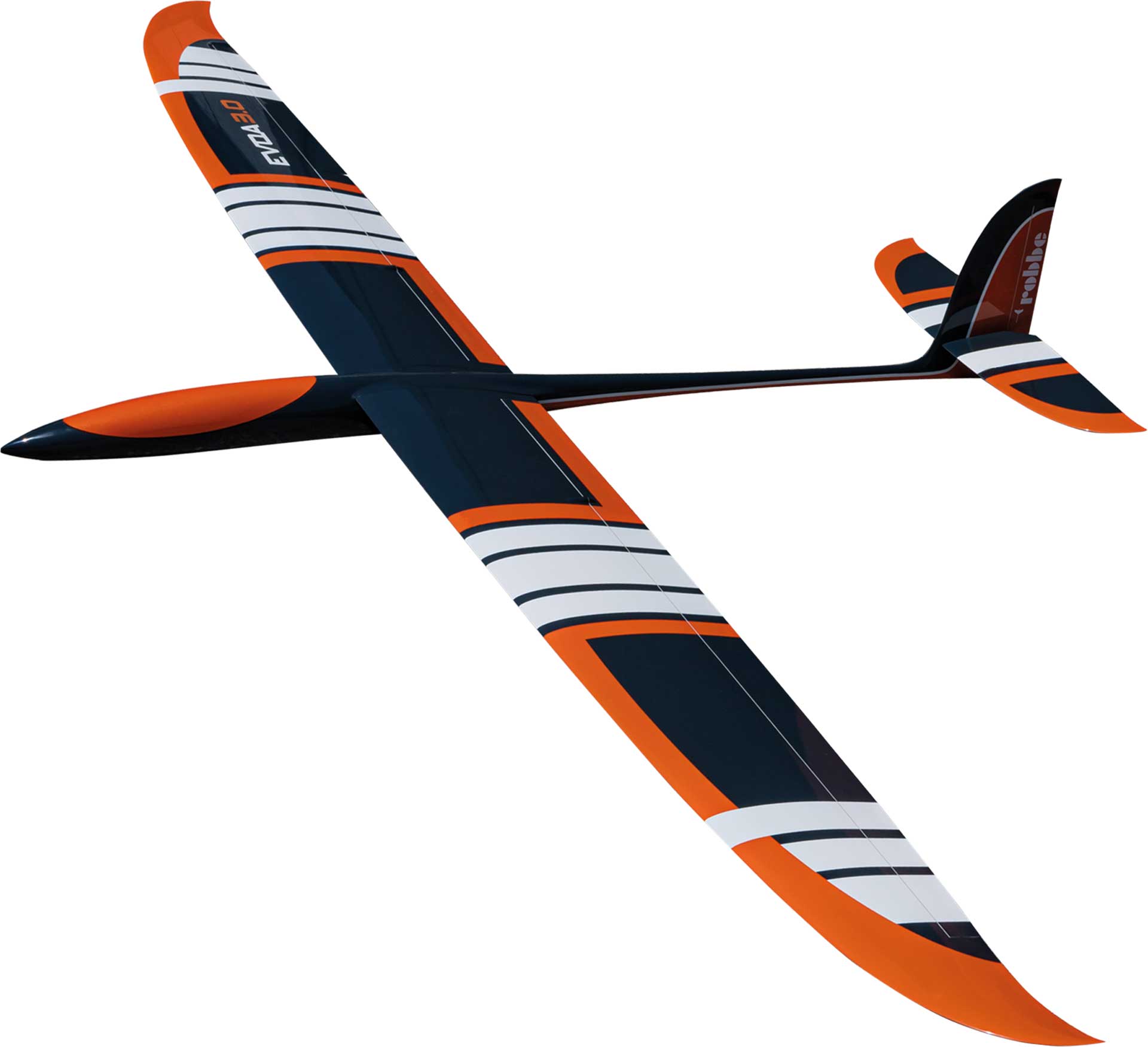

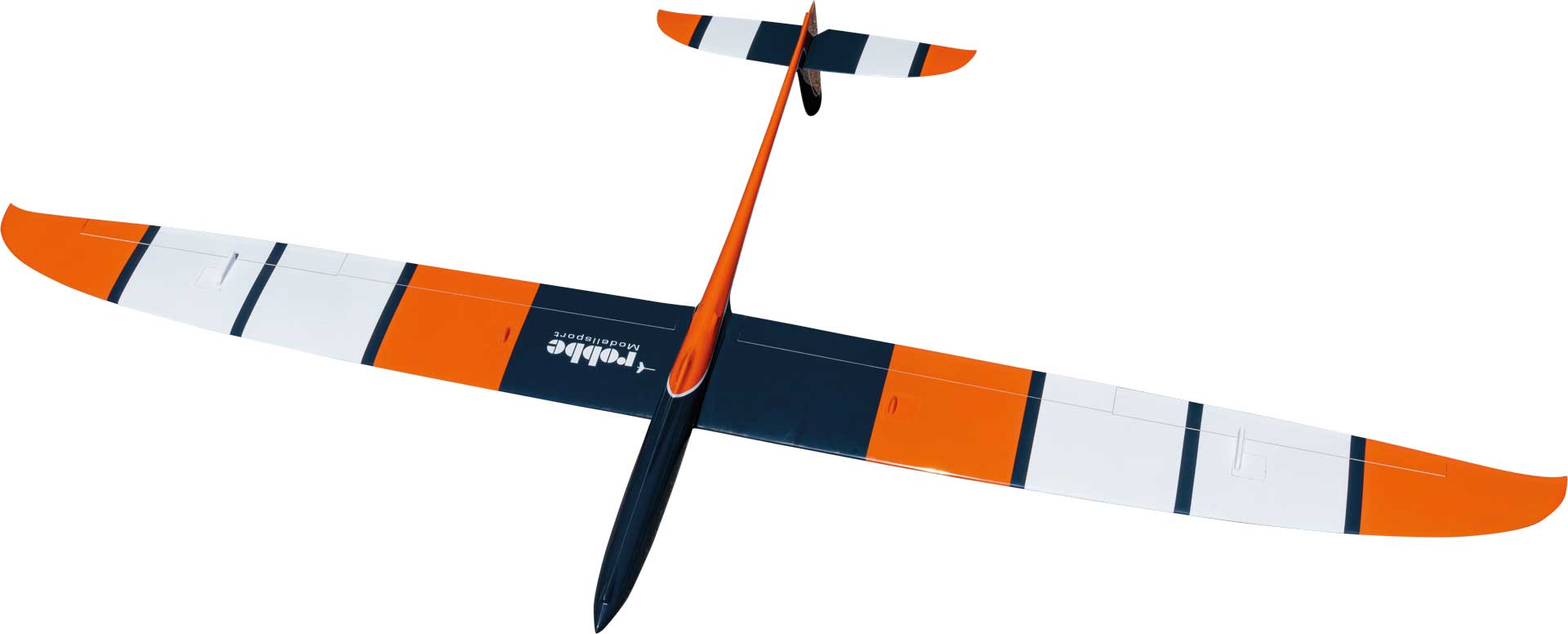

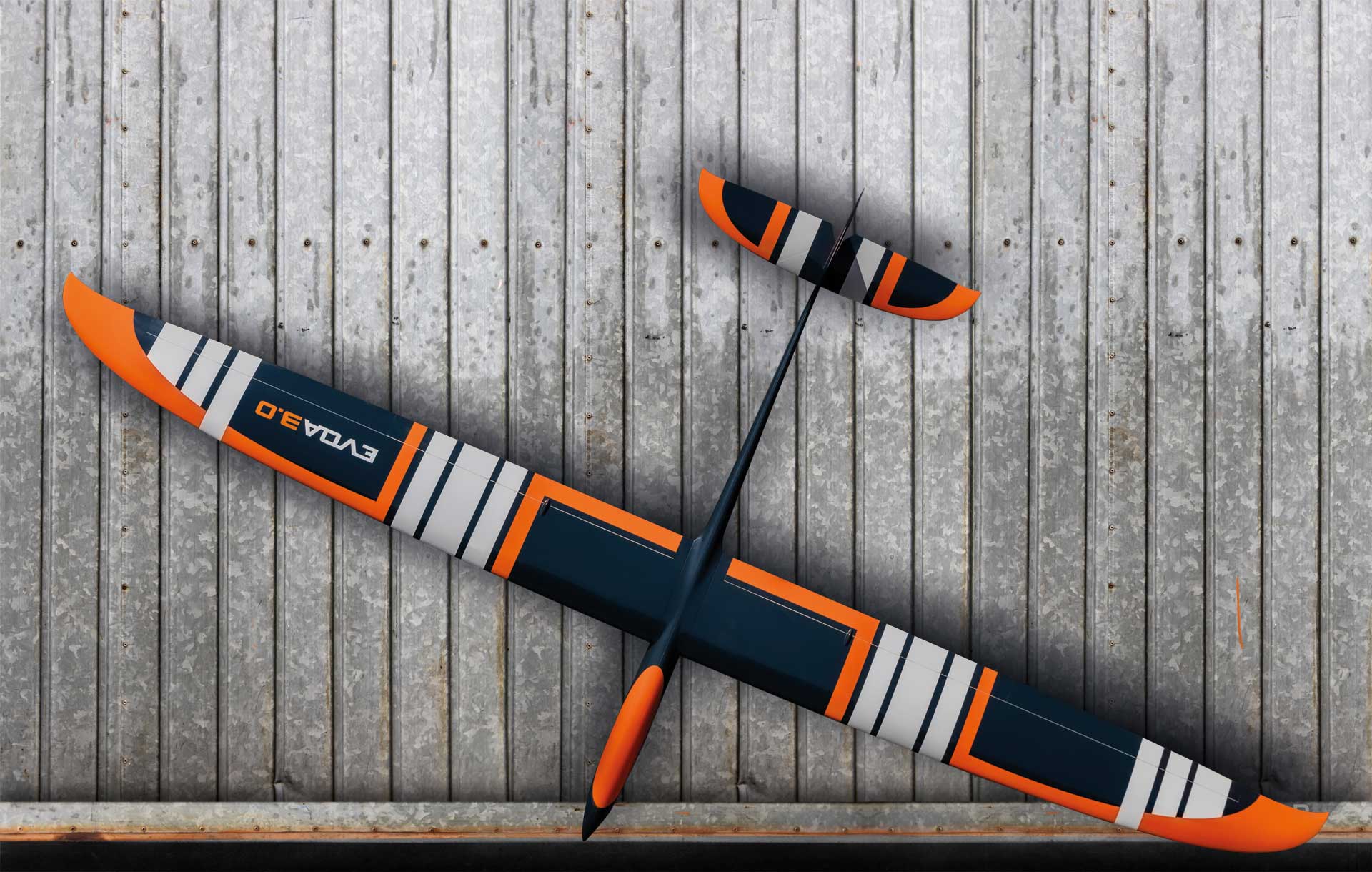

Our new all-rounder Star is called EVOA 3.0!

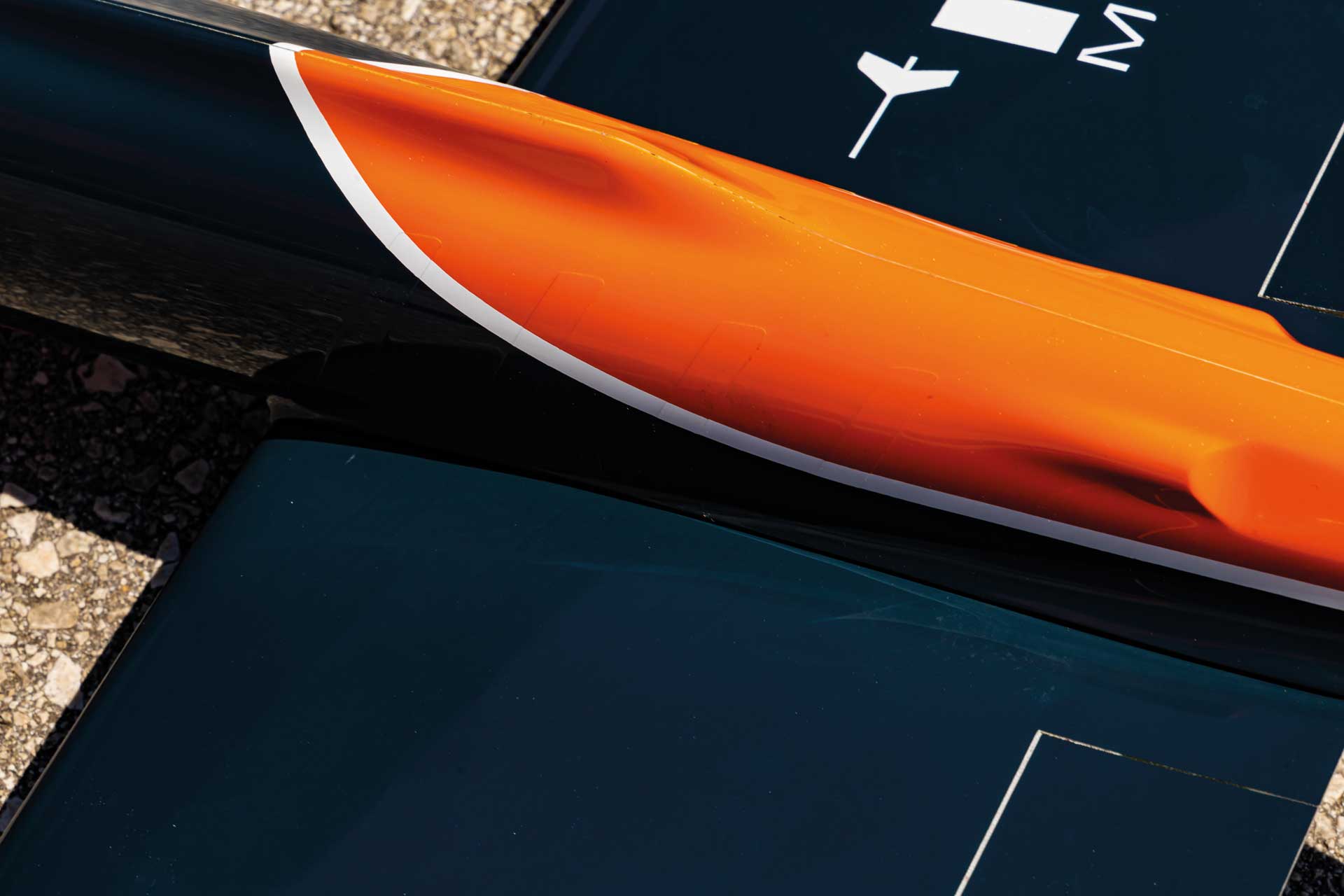

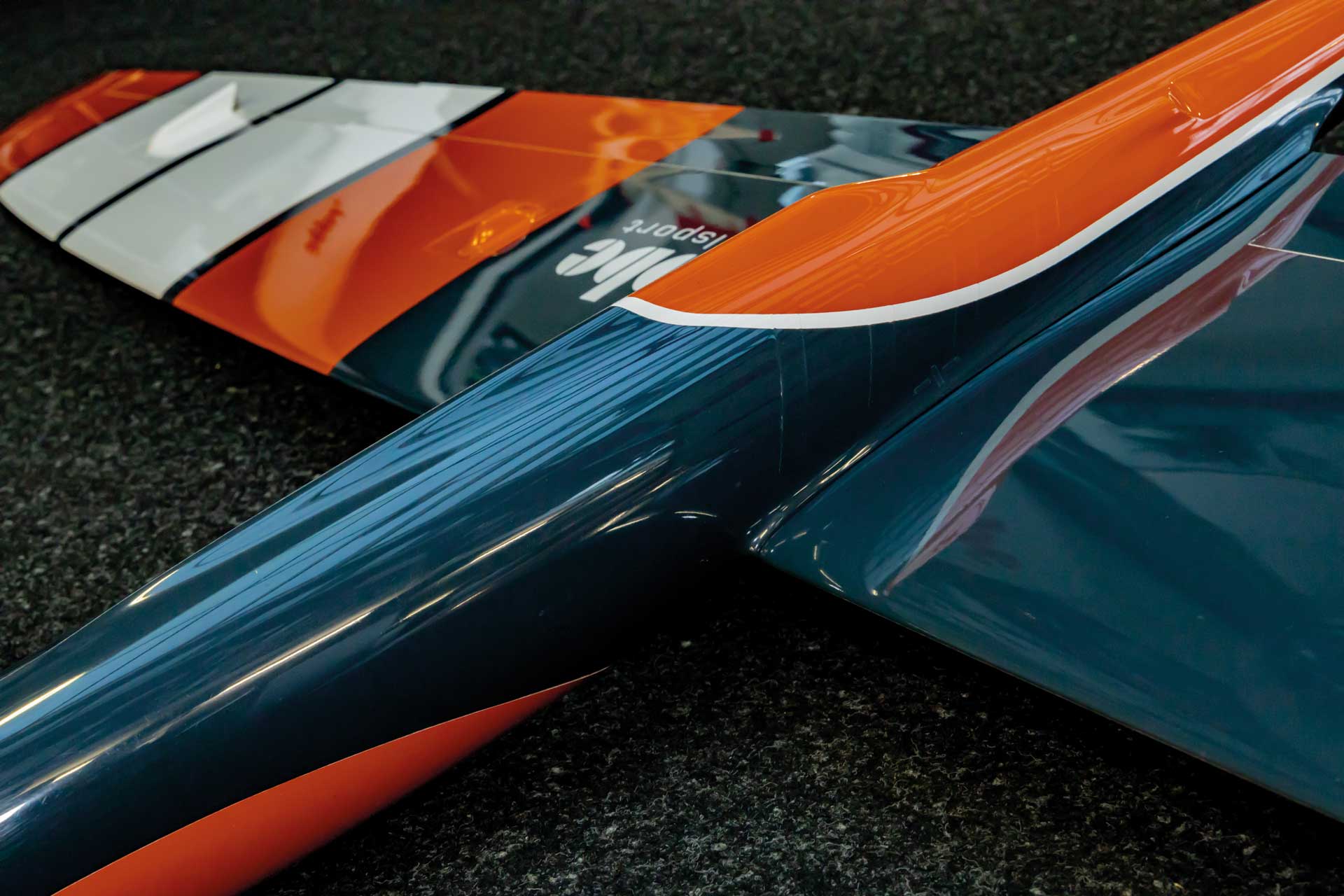

It has a very compact and transport-friendly size with its 3.0 m wingspan and the two-part wing, which is attached to the side of the fuselage. The wing load is transmitted via a large CFRP spar connector.

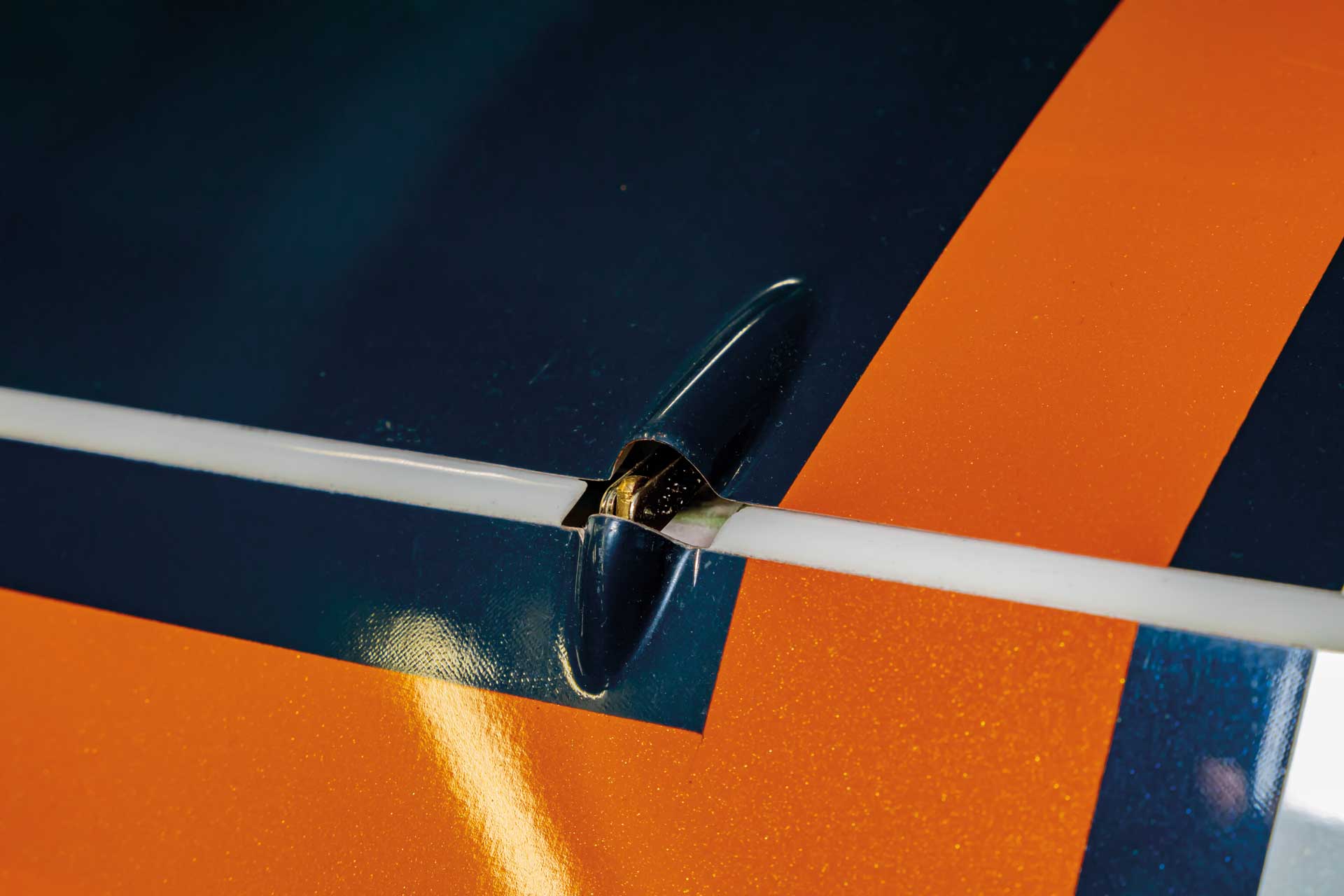

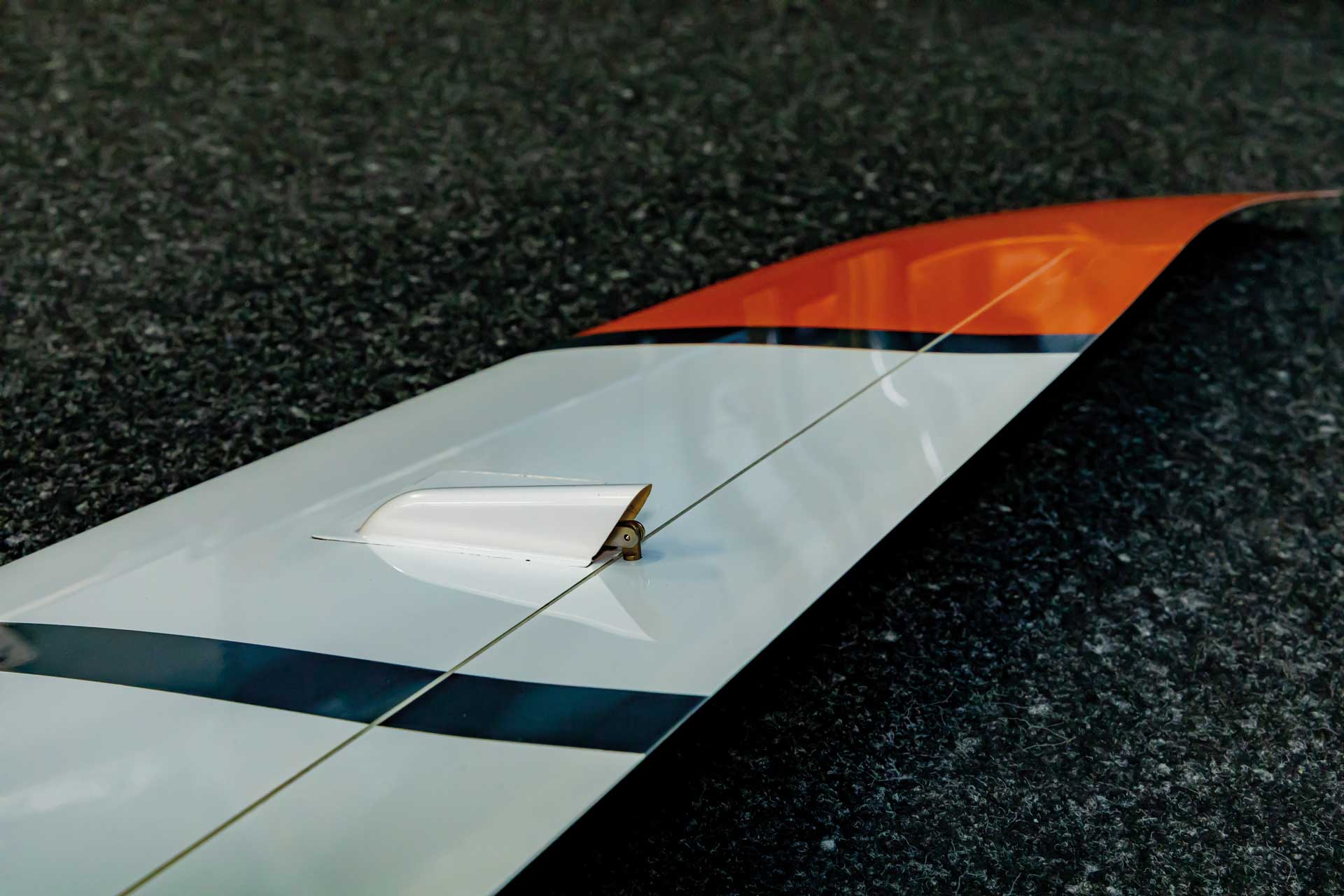

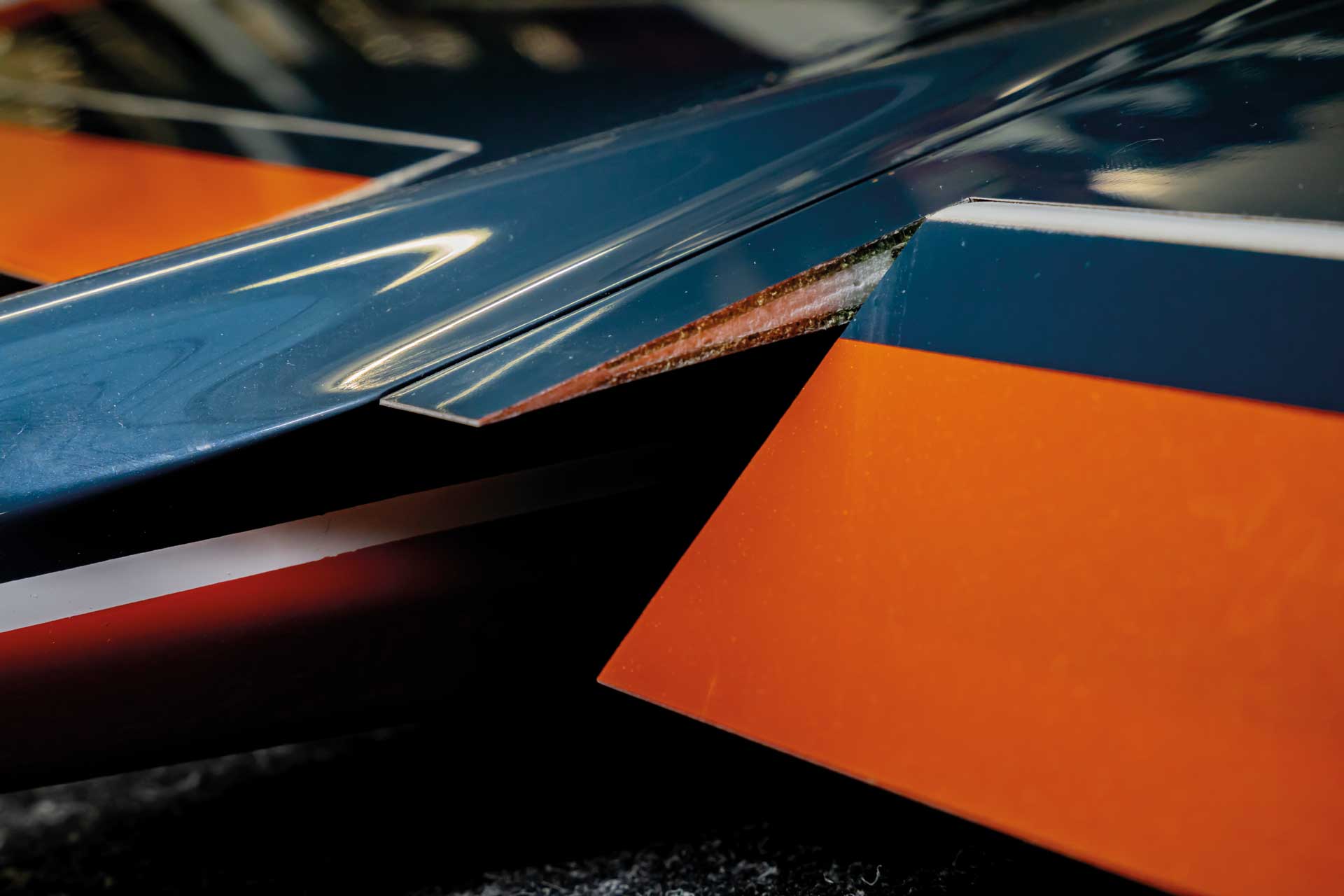

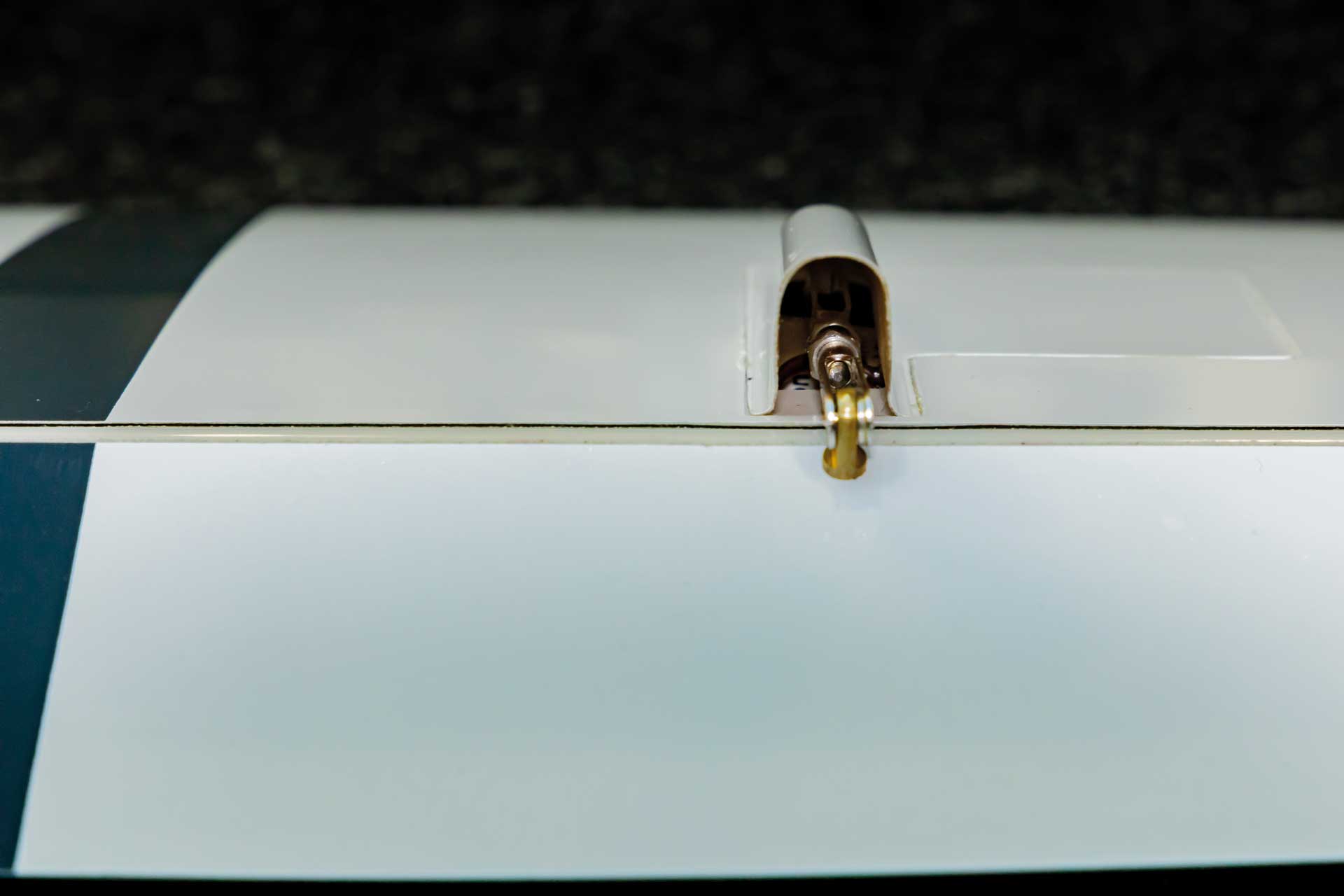

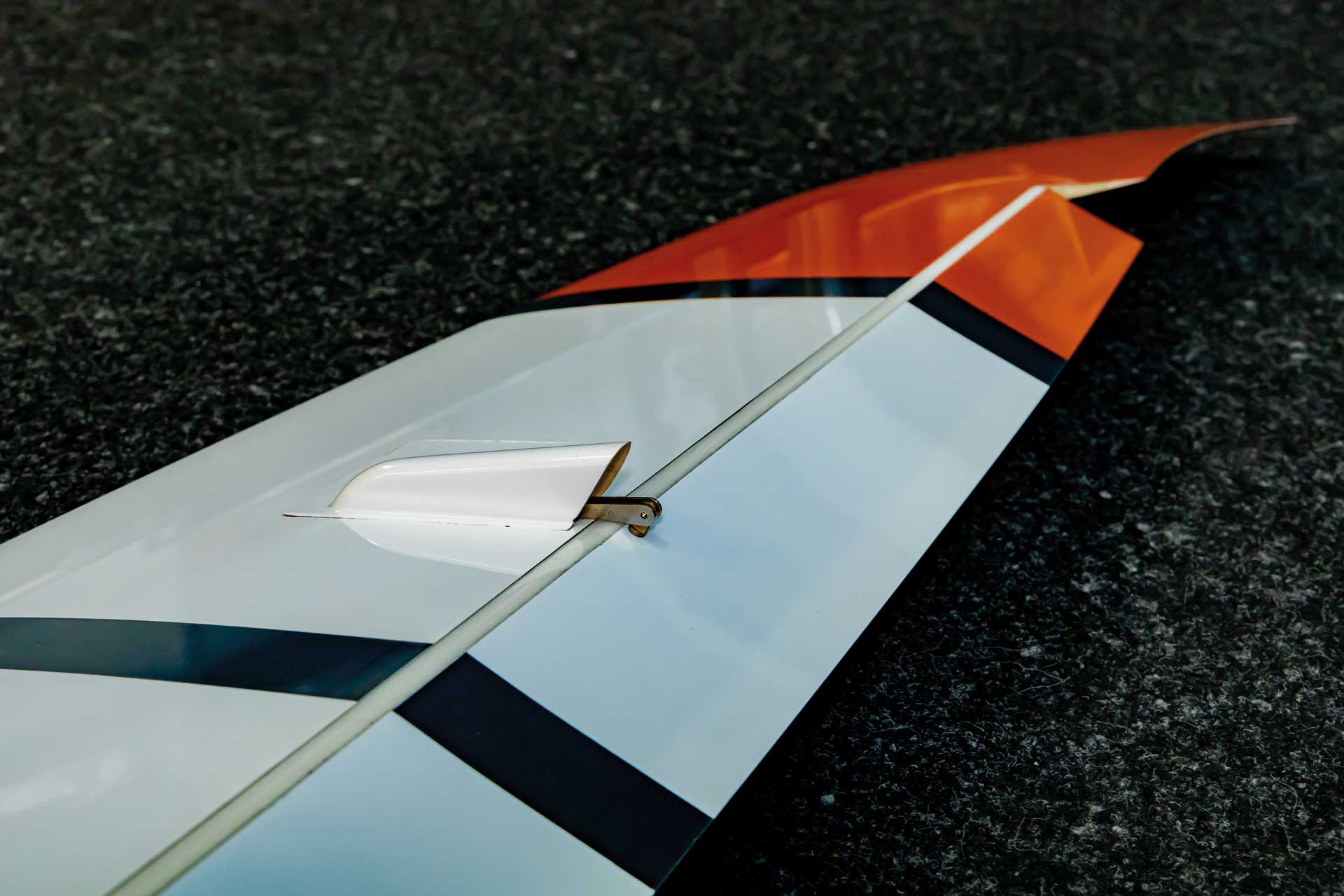

The EVOA is manufactured using the latest full GRP sandwich construction and has many carbon fiber reinforcements in the critical areas. The wing is designed as a typical 4-flap wing with ailerons and flaps, which are classically cross-hinged. The lateral axis is stabilized and controlled via a laterally pluggable pendulum elevator using a bellcrank. The flight characteristics can be described as more than just good-natured, especially due to its low weight. It can be circled slowly and comfortably in thermals, but can also be flown somewhat more sportily in dynamic aerobatics.

The model is available in four versions (electric and glider, each as ARF/PNP) and is largely pre-assembled in the PNP version.

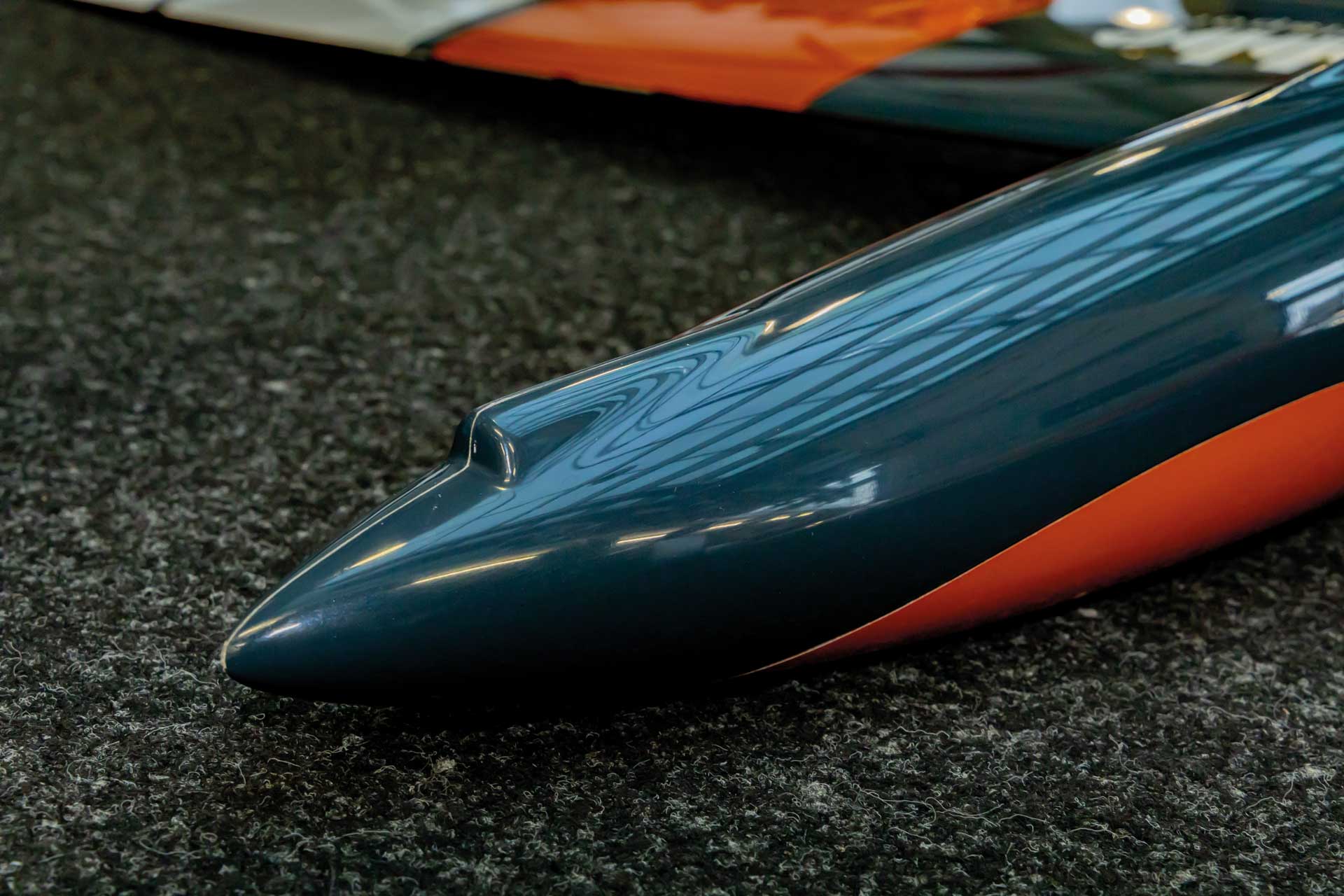

The Ro-Power Torque X-36 motor, spinner, Aeronaut propeller and the servos including wiring are pre-installed in the electric PNP version, so that the construction effort is reduced to a minimum. The glider PNP is just as prefabricated, but without the motor, but with a closed glider fuselage nose.
In the ARF version of both versions, you have the option of using individual RC components at your own discretion.



Mid_EVOA_Details_Versions_Segler
Robbe EVOA 3.0 ARF PNP

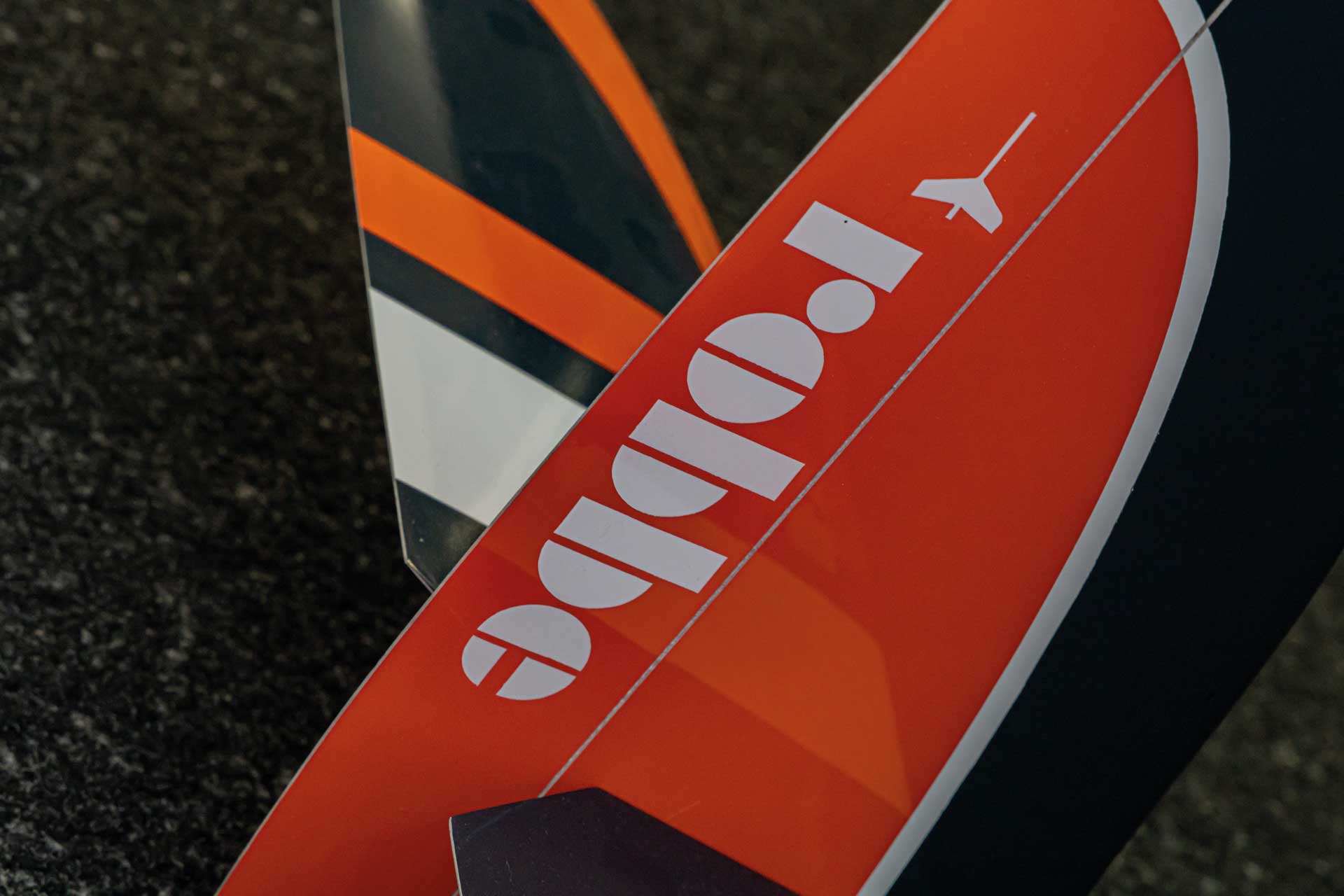

EVOA Leitwerk
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Robbe EVOA 3.0 ARF PNP
Downloads
Description "Robbe Modellsport EVOA 3.0 ARF VOLL-GFK "glider" HIGH PERFORMANCE GLIDER WITH 4-FLAP WING"

Our new all-rounder Star is called EVOA 3.0!


It has a very compact and transport-friendly size with its 3.0 m wingspan and the two-part wing, which is attached to the side of the fuselage. The wing load is transmitted via a large CFRP spar connector. The EVOA is manufactured using the latest full GRP sandwich construction and has many carbon fiber reinforcements in the critical areas. The wing is designed as a typical 4-flap wing with ailerons and flaps, which are classically cross-hinged. The lateral axis is stabilized and controlled via a laterally pluggable pendulum elevator using a bellcrank. The flight characteristics can be described as more than just good-natured, especially due to its low weight. It can be circled slowly and comfortably in thermals, but can also be flown somewhat more sportily in dynamic aerobatics.

The model is available in four versions (electric and glider, each as ARF/PNP) and is largely pre-assembled in the PNP version.
The Ro-Power Torque X-36 motor, spinner, Aeronaut propeller and the servos including wiring are pre-installed in the electric PNP version, so that the construction effort is reduced to a minimum. The glider PNP is just as prefabricated, but without the motor, but with a closed glider fuselage nose.
In the ARF version of both versions, you have the option of using individual RC components at your own discretion.

Technical data
Wing-span (mm): 3000
Flight weight approx. (g): 2890
Control: H,S,Q,WK
Length (mm): 1500
Manufacturer: Robbe Modellsport
Fuselage: Carbon/FiberGlass
Wings: Fiberglass/Carbon
Rec. Battery: 4S/3200-4000mAh LiXX
Version: ARF - ALMOST READY TO FLY
Airfoil: HQ/W2,5-9
Flight Skill: Professional
Build Skill: Advanced
Drive Type: Without
Box contents
  • Model EVOA 3.0 in full GRP/CFRP construction, in mold multicolor painted
  • CFK coving
  • small material
  • Assembly instructions in German/English/French


The product EVOA 3.0 ARF VOLL-GFK "Segler" from Robbe Modellsport in the category Glider Models has a wingspan of 3000 and a weight of . The model is controlled via the functions H,S,Q,WK*. The Model is GFK/CFK .

* Explanation of control functions:
  • H ... Elevator
  • S ... Rudder
  • Q ... Ailerons
  • M ... Motor controlled
  • V ... Vector controlled
  • SK ... Airbrakes
  • WK ... Flaps
  • WZFW ... Retractable Landing Gear
  • SKU ... Glider Tow
  • ( ) ... optional - control functions written in brackets are optionally available for the described model
