Robbe Modellsport Boo Slope Glider wooden kit in innovative plywood construction
Product number:
2694
GTIN/EAN:
9010189254683
Downloads
- Manual
- Manual V2
- Boo High resolution images of the construction steps
- Boo High resolution images of the construction steps V2
Description "Robbe Modellsport Boo Slope Glider wooden kit in innovative plywood construction"

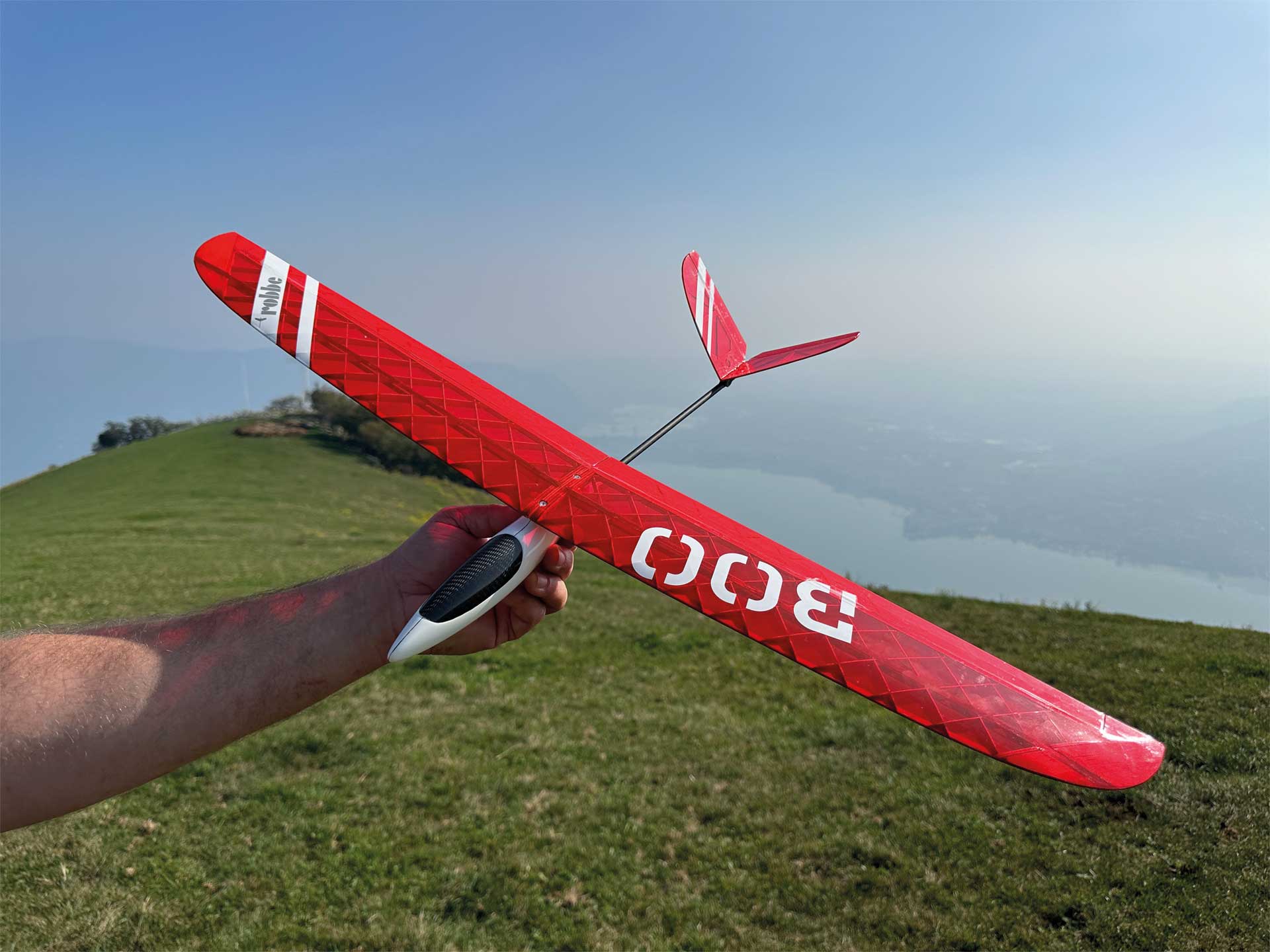

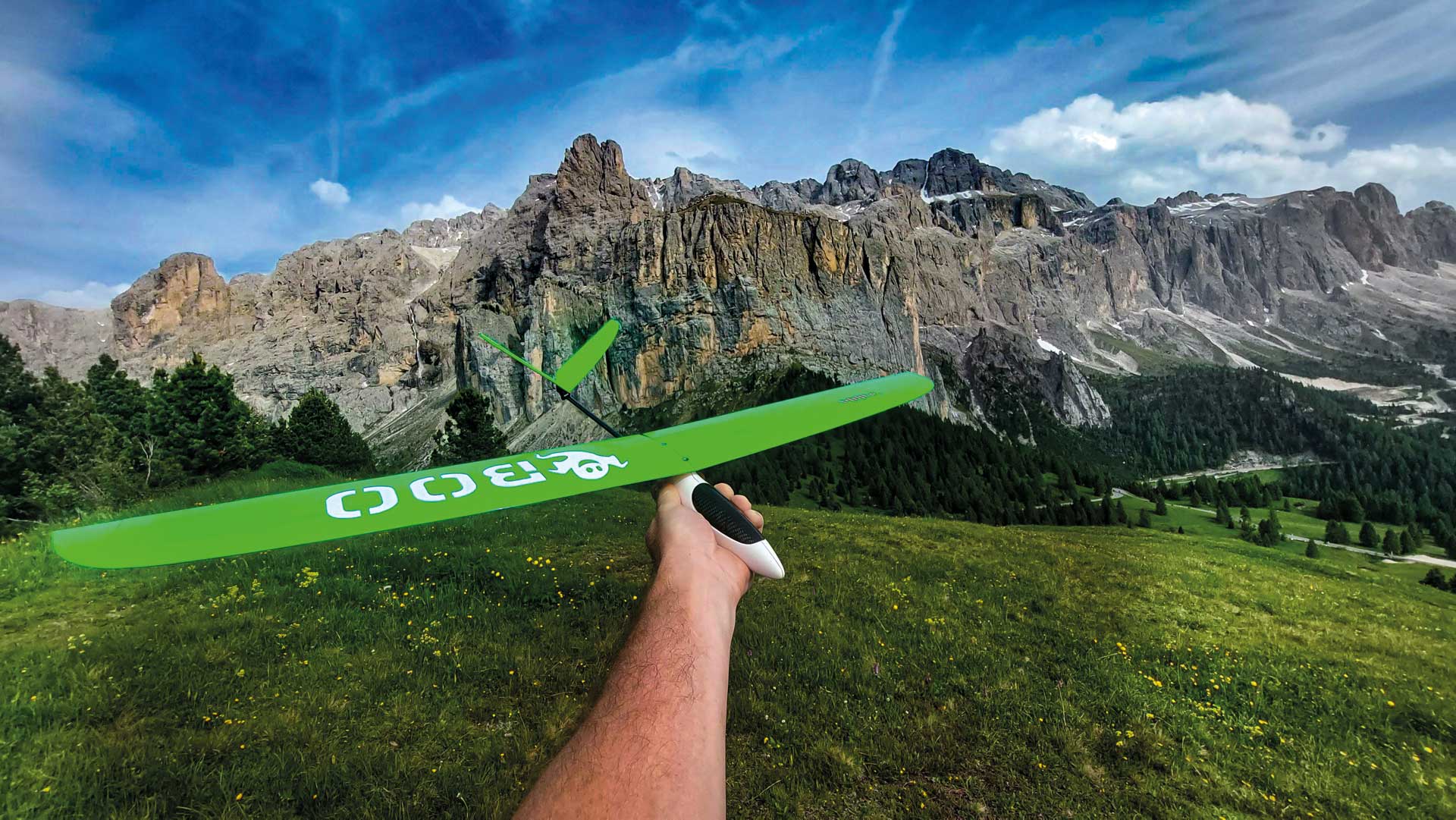

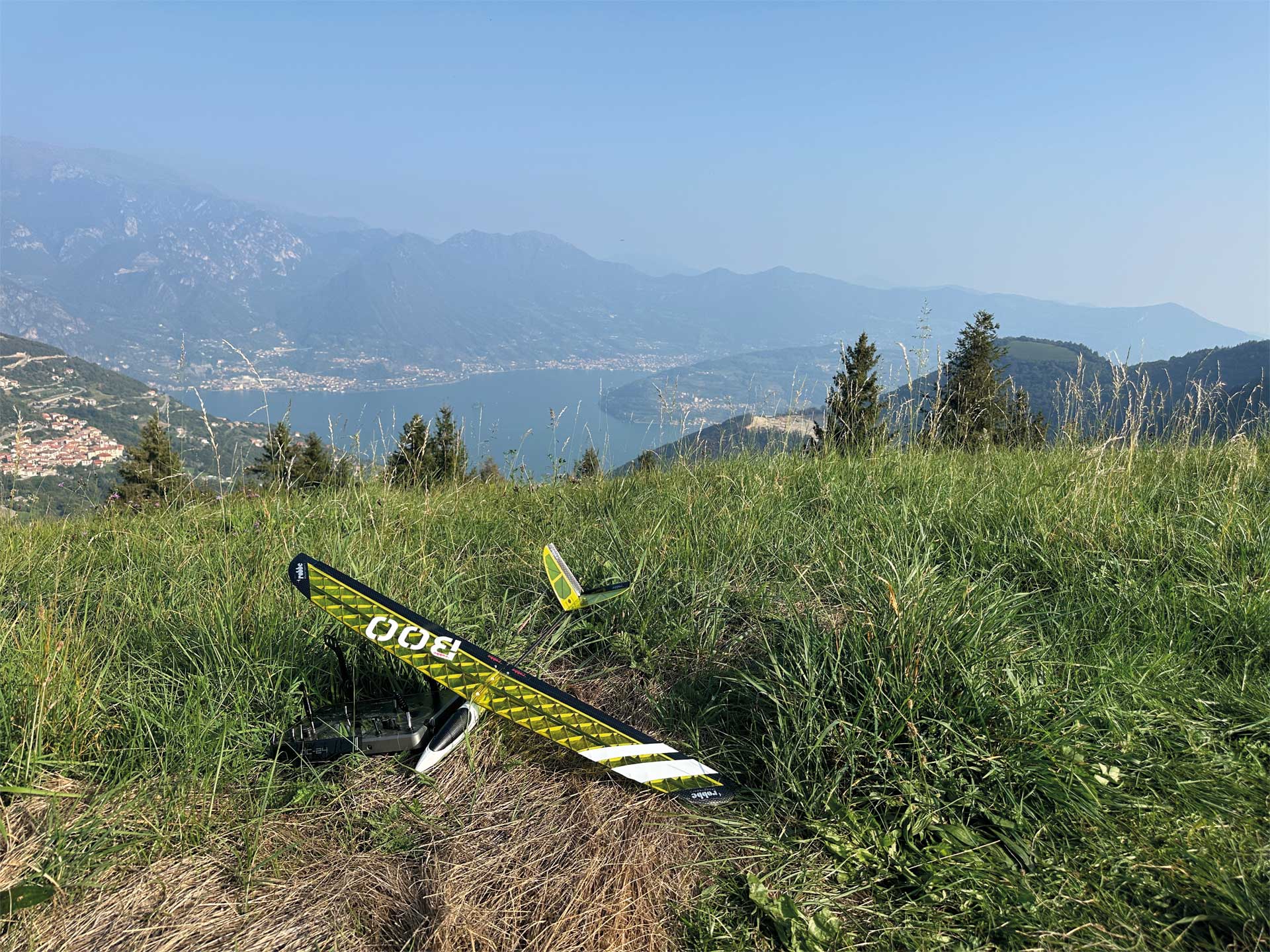

BOO – Tiny little fun slope glider!
Congratulations and thank you for choosing the BOO. With a span of 800 mm and 3-axis control the BOO is ideal for flying from the slope, sand dune or embankment. Small in size, yet designed for great fun. With its transportfriendly dimensions BOO fits easily on the parcel shelf of a car or, when dismantled, in the hand luggage on an aeroplane. The model promises the greatest fun in the smallest of spaces. The laser cut wooden parts are assembled and glued in just a few simple steps using the slot together and add glue principle. Please read these instructions carefully, even if you have already built many RC models. We have given a lot of thought to detailed solutions in order to keep the construction effort as simple and low as possible without neglecting functionality. The model was developed with modern 3D CAD technology and the kit is manufactured with modern CNC technology. As a result you can be sure that the components fit together properly and there will be no nasty surprises during the assembly!

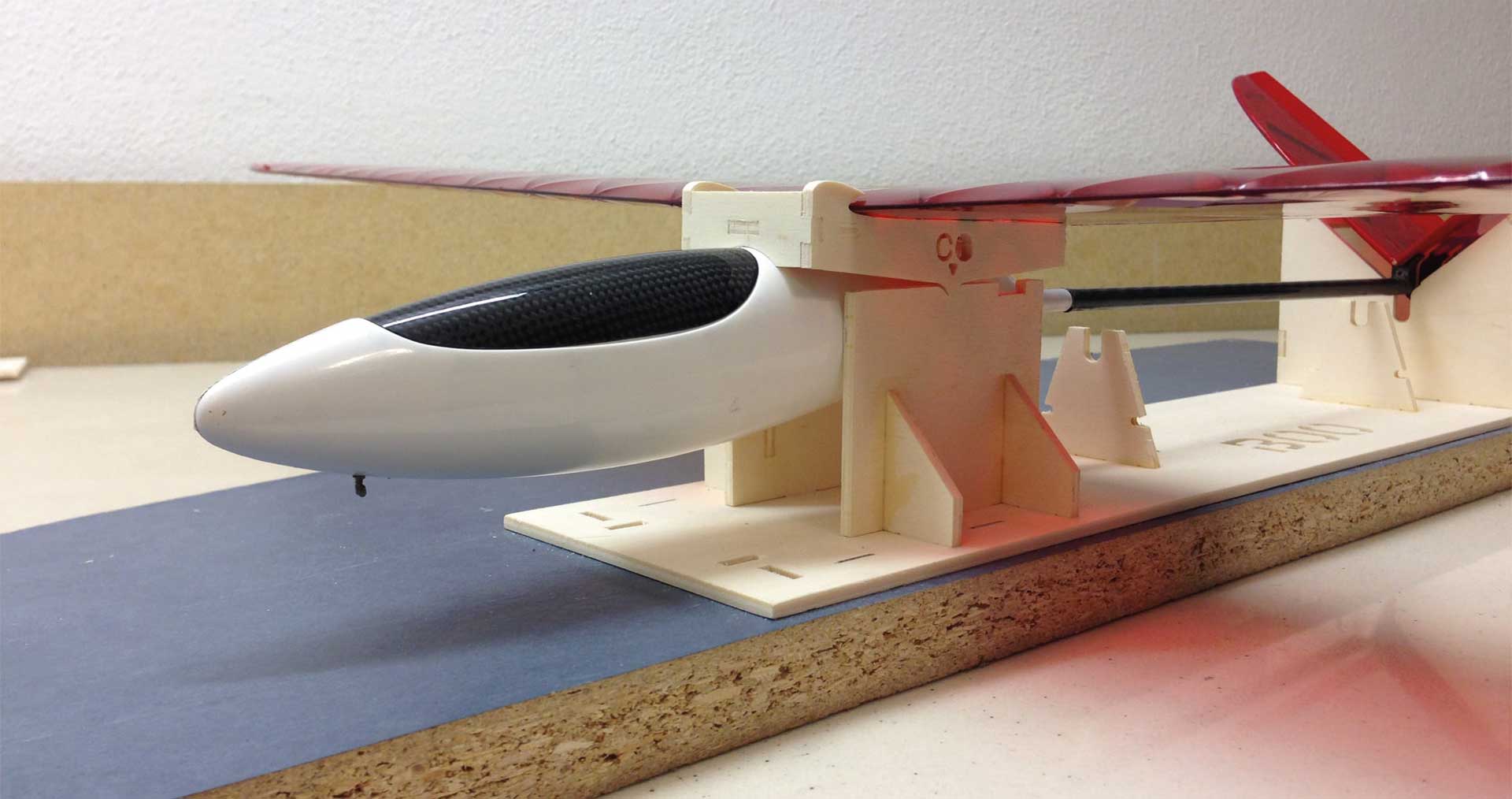

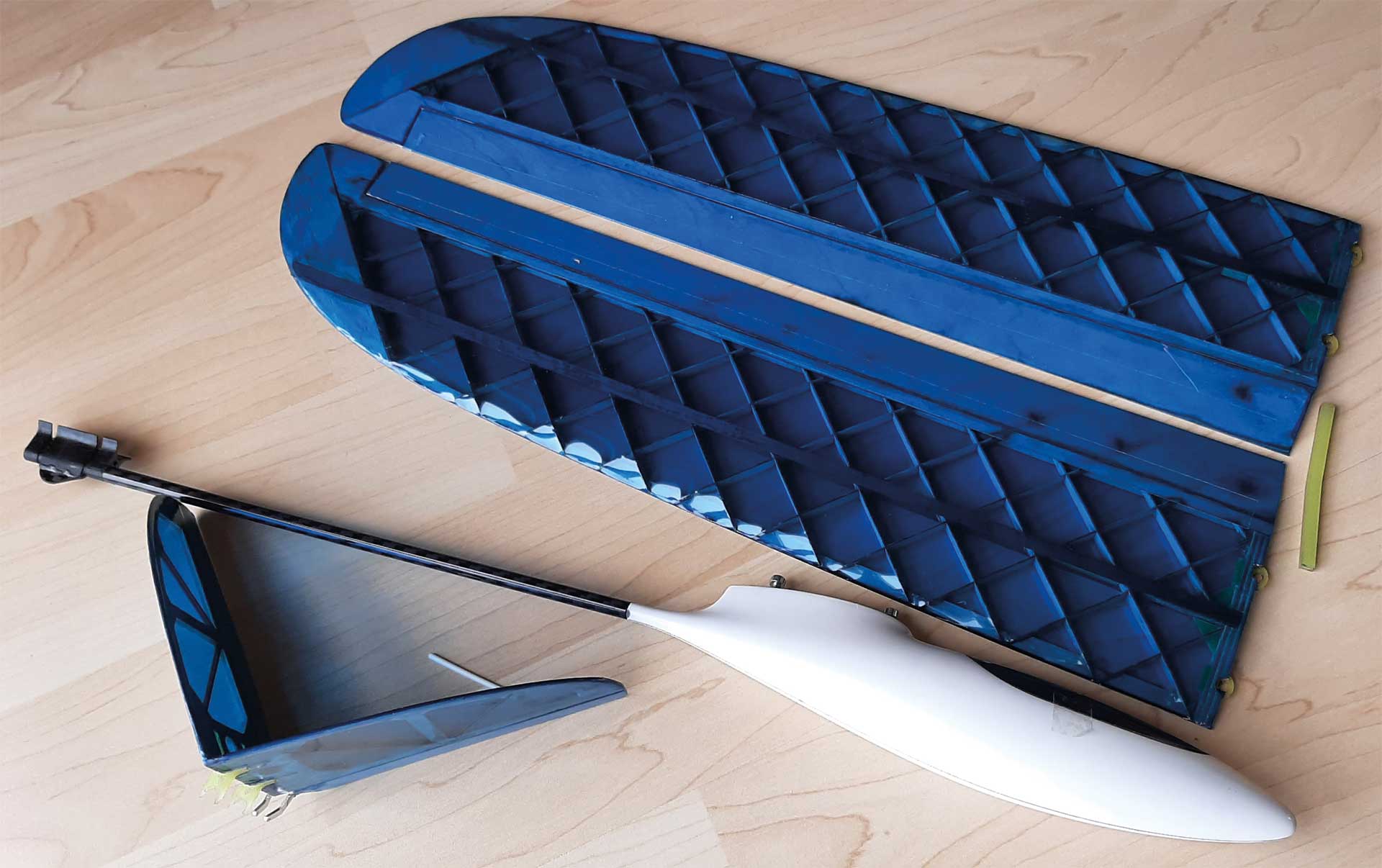

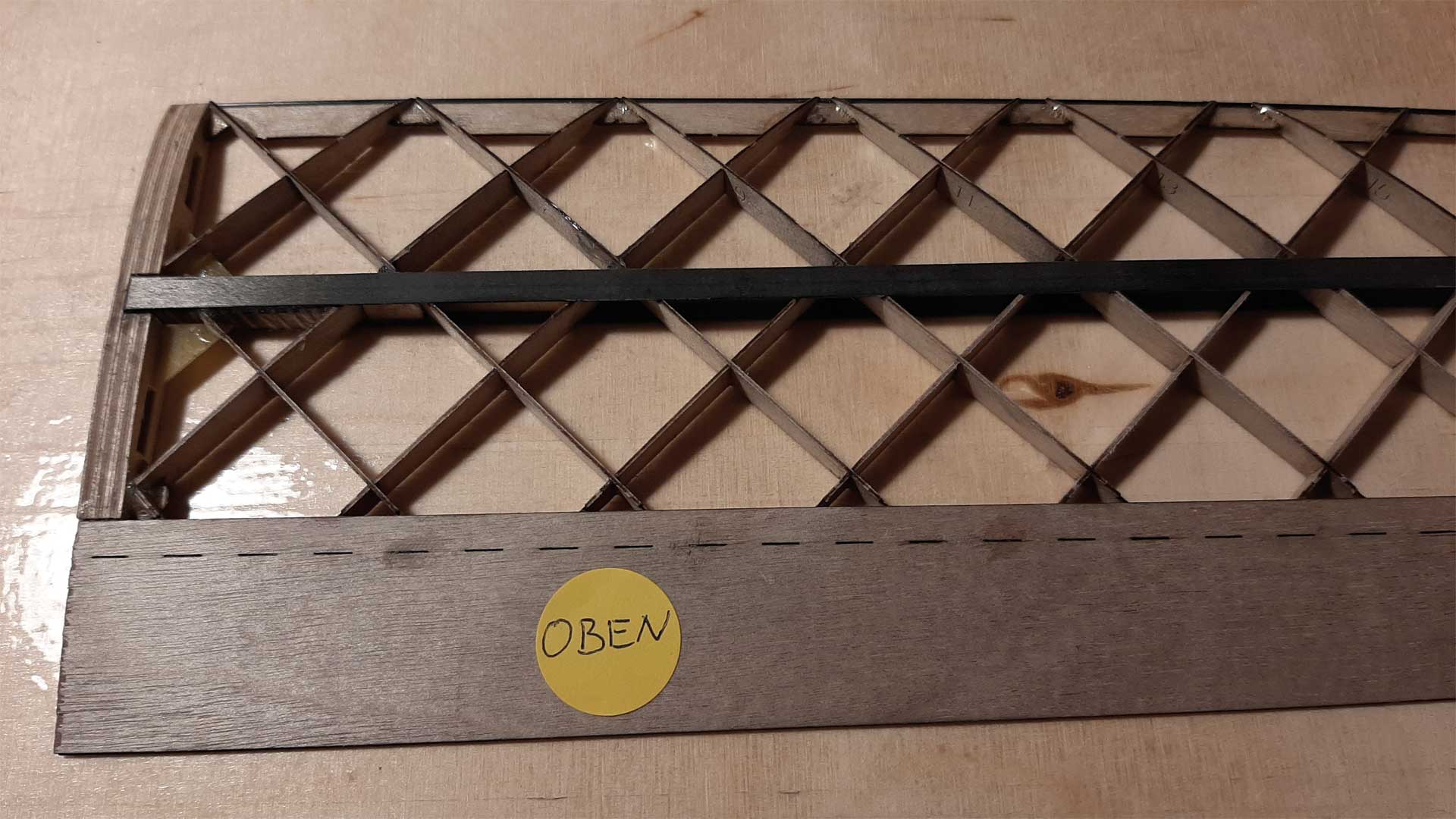

The construction of the BOO can be built quickly and easily thanks to CNClaser cut parts. With the help of these building instructions, the BOO is assembled without the need of a plan. The construction is quick and easy and can be carried out over a few evenings. The two halves of the wing and the V-tail are assembled directly on the building board. The final assembly takes place on a building jig which is included in the kit. This ensures all components are precisely aligned with one another. When finished the 2-piece wing and the V-tail can easily be removed. This creates a very transport-friendly model.
Recommended R/C equipment:
Materials needed:
Tools required:
Congratulations and thank you for choosing the BOO. With a span of 800 mm and 3-axis control the BOO is ideal for flying from the slope, sand dune or embankment. Small in size, yet designed for great fun. With its transportfriendly dimensions BOO fits easily on the parcel shelf of a car or, when dismantled, in the hand luggage on an aeroplane. The model promises the greatest fun in the smallest of spaces. The laser cut wooden parts are assembled and glued in just a few simple steps using the slot together and add glue principle. Please read these instructions carefully, even if you have already built many RC models. We have given a lot of thought to detailed solutions in order to keep the construction effort as simple and low as possible without neglecting functionality. The model was developed with modern 3D CAD technology and the kit is manufactured with modern CNC technology. As a result you can be sure that the components fit together properly and there will be no nasty surprises during the assembly!
The construction of the BOO can be built quickly and easily thanks to CNClaser cut parts. With the help of these building instructions, the BOO is assembled without the need of a plan. The construction is quick and easy and can be carried out over a few evenings. The two halves of the wing and the V-tail are assembled directly on the building board. The final assembly takes place on a building jig which is included in the kit. This ensures all components are precisely aligned with one another. When finished the 2-piece wing and the V-tail can easily be removed. This creates a very transport-friendly model.
Recommended R/C equipment:
- 4-channel transmitter, with dual rates and expo
- Micro receiver with normal range (e.g. JETI R5L / Futaba R2106GF)

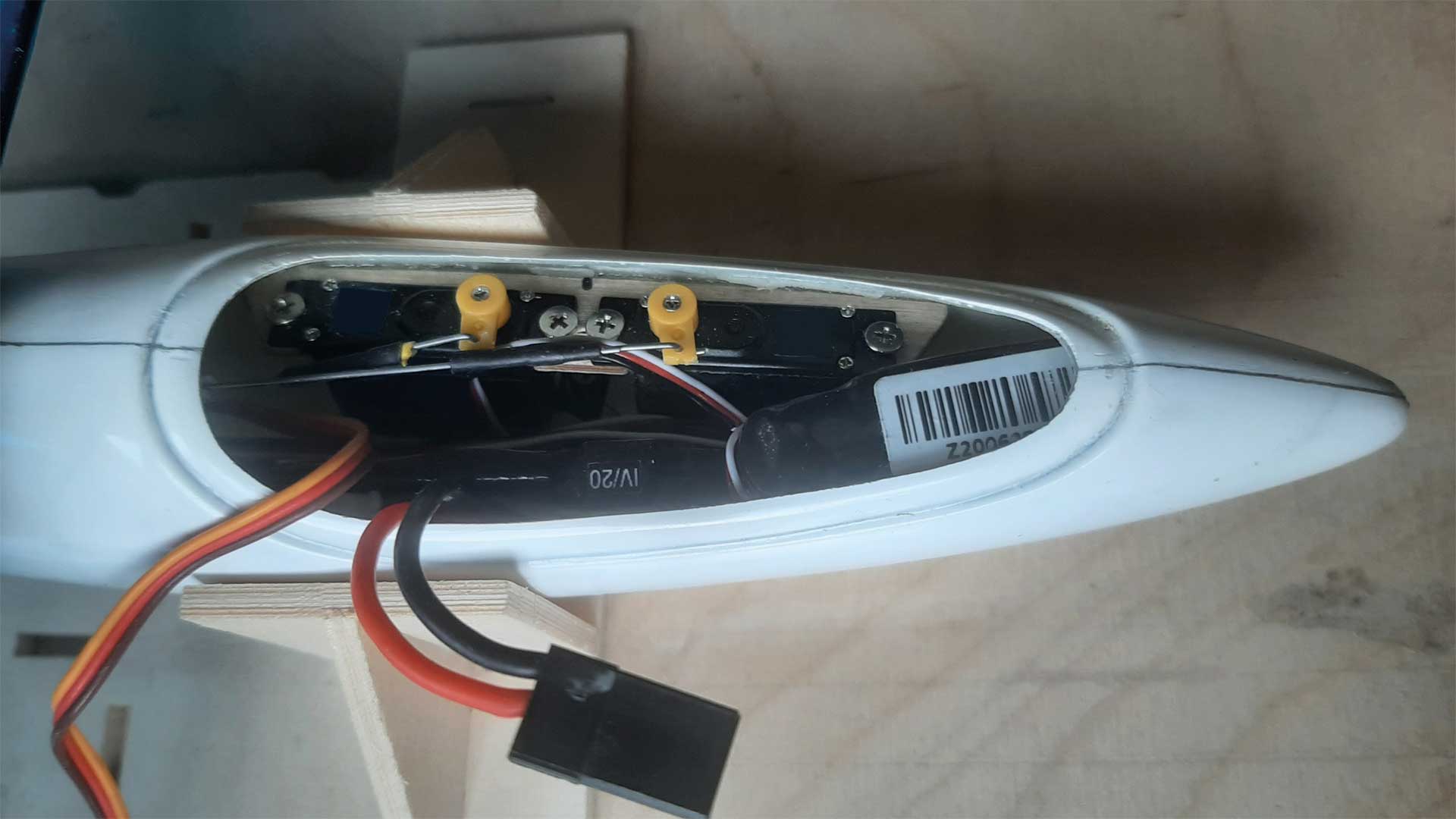

- Sub-Micro Servos, 8 mm thick, 4x DIGITAL HV Servo 7g/approx 20x8x18 mm
- Battery, LiPo 2S, 200 - 400 mAh, 7.4V (e.g. Robbe Ro-Power # 7317 / 7313)
Materials needed:
- Film for covering, approx. 60 cm (e.g. ORALIGHT ® iron-on film)
- Lead approx. 10 g (for CG adjustment)
Tools required:
- Building board
- Sharp knife
- Side cutters
- 100 and 240 grit sandpaper
- Sanding block
- White glue
- Robbe Super Glue „Speed“ (thin and medium # 5062 / 5063)
- Aktivatorspray # 5017
- Glueholder # 50610
- Epoxy adhesive
- Files (square file 3mm, fine flat file)
- Clamps and weights to weigh down
- Set square, 90° angle
- Drill: 2mm, 2.5mm, 3mm, 6mm
- Ruder deflection indicator „ROBBE“ „M“
- M3 Tap
- Soldering iron, solder
- Thin double-sided adhesive tape
- Masking tape
- Phillips screwdriver
- Film iron
- Hot-melt adhesive
Technical data
| Wing-span (mm): | 800 |
|---|---|
| Flight weight approx. (g): | 150 |
| Control: | H,S,Q |
| Length (mm): | 1030 |
| Manufacturer: | Robbe Modellsport |
| Fuselage: | GFK |
| Wings: | Wood/rib construction |
| Rec. Battery: | 2S/240-320mAh LiXX |
| Version: | KIT |
| Flight Skill: | Advanced |
| Build Skill: | Advanced |
| Drive Type: | Without |
Box contents

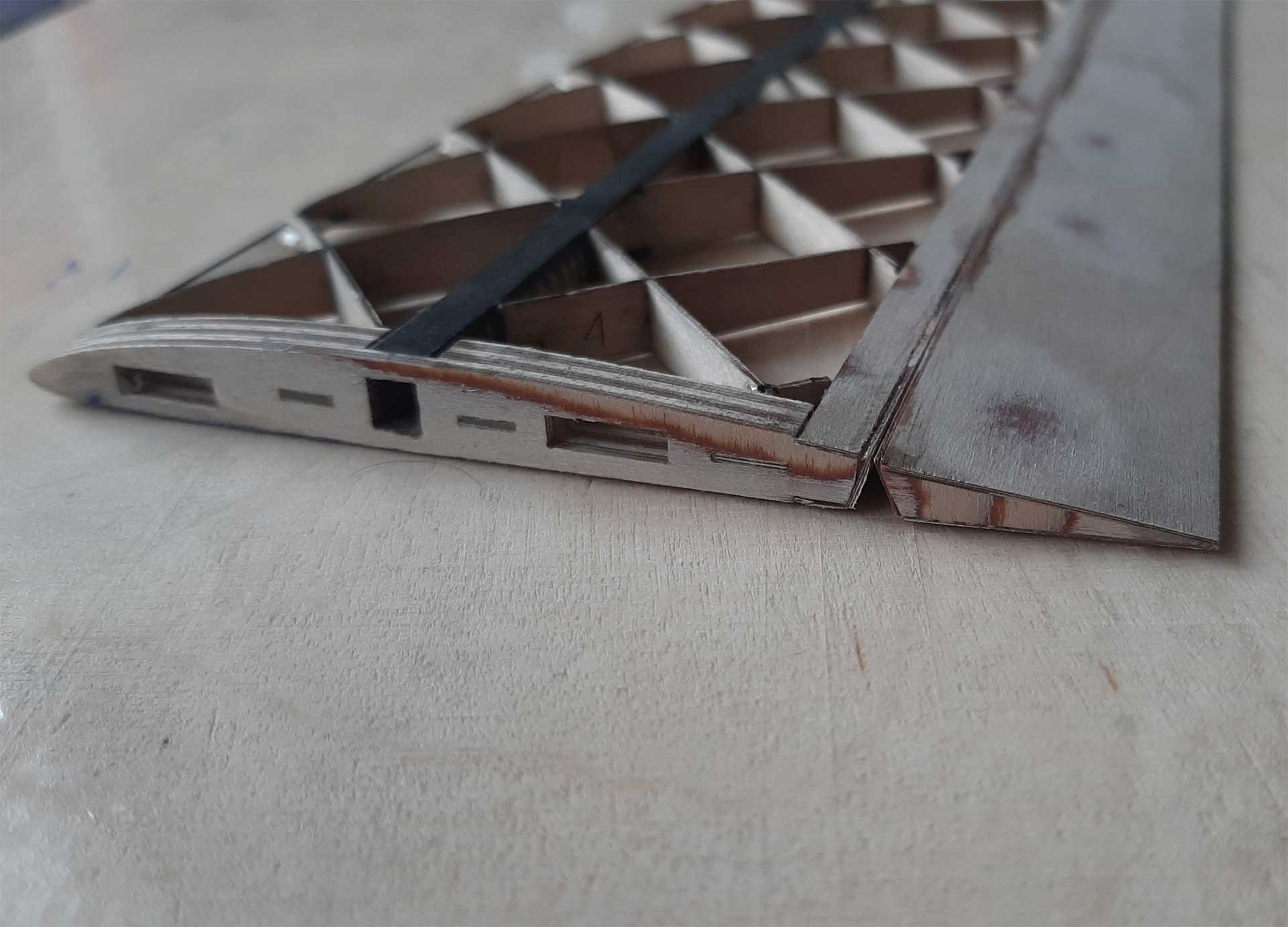

- all wooden parts required for construction made of precisely laser-cut plywood
- construction slipway for wing and tailplane made of poplar plywood
- GRP fuselage with canopy in carbon look
- small material for rudder linkages
- various screws and nuts
- GFK rudder horns
- various GFK milled parts
- CFK wing plug-in
- decal kit
- comprehensive illustrated instructions in German, English, French
Videos
The product Boo Slope Glider Holzbausatz from Robbe Modellsport in the category Glider Models has a wingspan of 800 and a weight of . The model is controlled via the functions H,S,Q*. The Model is GFK .
* Explanation of control functions:
* Explanation of control functions:
- H ... Elevator
- S ... Rudder
- Q ... Ailerons
- M ... Motor controlled
- V ... Vector controlled
- SK ... Airbrakes
- WK ... Flaps
- WZFW ... Retractable Landing Gear
- SKU ... Glider Tow
- ( ) ... optional - control functions written in brackets are optionally available for the described model
