Housing-Ø (mm): | 50 |
---|---|
Housing length (mm): | 62 |
LiPo (S): | 6 |
Shaft-Ø (mm): | 6 |
Propeller: | 6S/ 17x8, 16x10, 17x8 |
Weight (g): | 397 |
Examples of use: | Segler bis 5,5m/Acro bis 1,8m, Cyclon |
RPM/V: | 395 |
Engine-type: | External rotor |
Number of poles: | 14 |
Stromaufnahme max. (A): | 55 |
Weight category (g): | 250 to 500 |
Calculated measured values from eCalc:
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
- 6S 17x8" Robbe Dynamic electric approx. 63A (only short-time operation recommended!)
- 6S 16x10" APC electric approx. 59A
- 6S 17x8" Aeronaut CAM Carbon approx.59A
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
- The accessory set must be ordered separately (not included in the scope of delivery)!
Manual
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
Details of the manufacturer (information obligations under the GPSR Product Safety Regulation)
Modellbau Lindinger GmbH
Industriestraße 10
4565 Inzersdorf
ÖSTERREICH
Telefon: +43/7582/81313-0
[email protected]

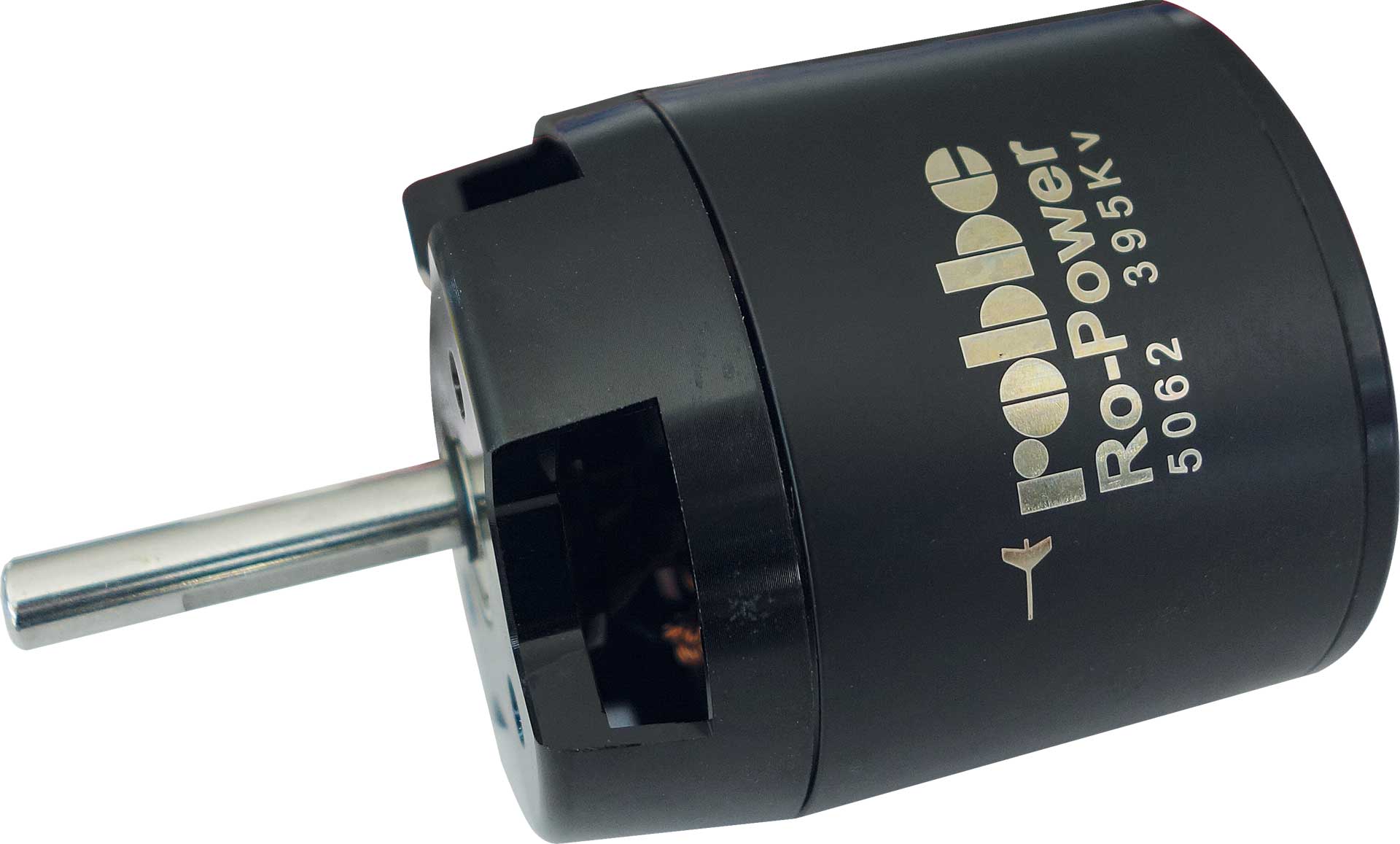

Robbe Modellsport RO-Power Torque 5062 395 K/V Brushless Motor
