Robbe Modellsport RO-POWER TORQUE 6374 200 K/V BRUSHLESS MOTOR
Product number:
5814
| Housing-Ø (mm): | 63 |
|---|---|
| Housing length (mm): | 74 |
| LiPo (S): | 10-12 |
| Plug (mm): | ohne |
| Shaft-Ø (mm): | 8 |
| Propeller: | 12S 20x8/18x12, 10S 20x10/21x10 |
| Weight (g): | 821 |
| Examples of use: | Akro + 3D bis 2,3m, Schlepper |
| RPM/V: | 200 |
| Engine-type: | External rotor |
| recom. Controller: | RO-CONTROL PRO 14-130 6-14S -130(160)A |
| Stromaufnahme max. (A): | 85 |
| Weight category (g): | 750 to 1000 |
Calculated measured values from eCalc:
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9

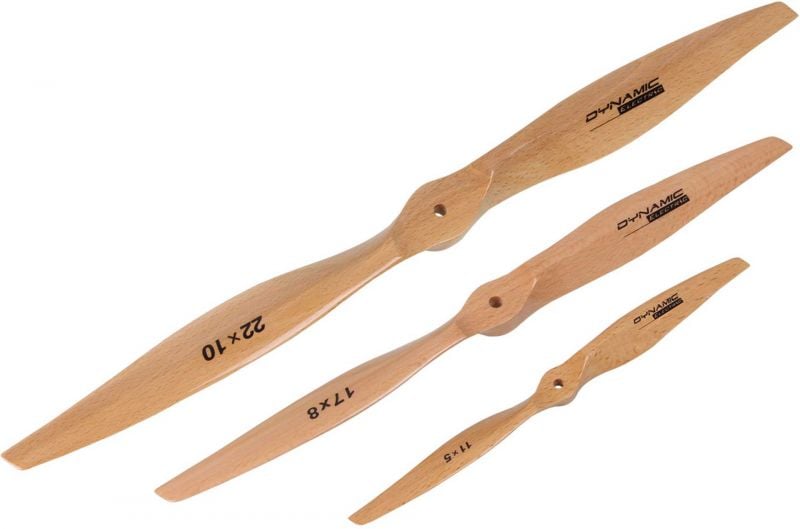

- 12S 20x8" Robbe Dynamic electric approx. 70A
- 12S 18x12 "APC electric approx. 65A
- 10S 20x10" APC electric approx. 59A
- 10S 21x10" Robbe Dynamic approx. 72A (only short-time operation recommended!)
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
- The accessory set must be ordered separately (not included in the scope of delivery)!
Manual
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
