Housing-Ø (mm): | 63 |
---|---|
Housing length (mm): | 59 |
LiPo (S): | 6-8 |
Shaft-Ø (mm): | 8 |
Propeller: | 6S/ 19x8, 18x11, 8S/ 16x8, 17x10 |
Weight (g): | 571 |
Examples of use: | Akro + 3D bis 2m / MXS76" / SU-29 140 |
RPM/V: | 350 |
Engine-type: | External rotor |
recom. Controller: | RO-CONTROL PRO 14-130 6-14S -130(160)A |
Stromaufnahme max. (A): | 73 |
Weight category (g): | 500 to 750 |
Calculated measured values from eCalc:

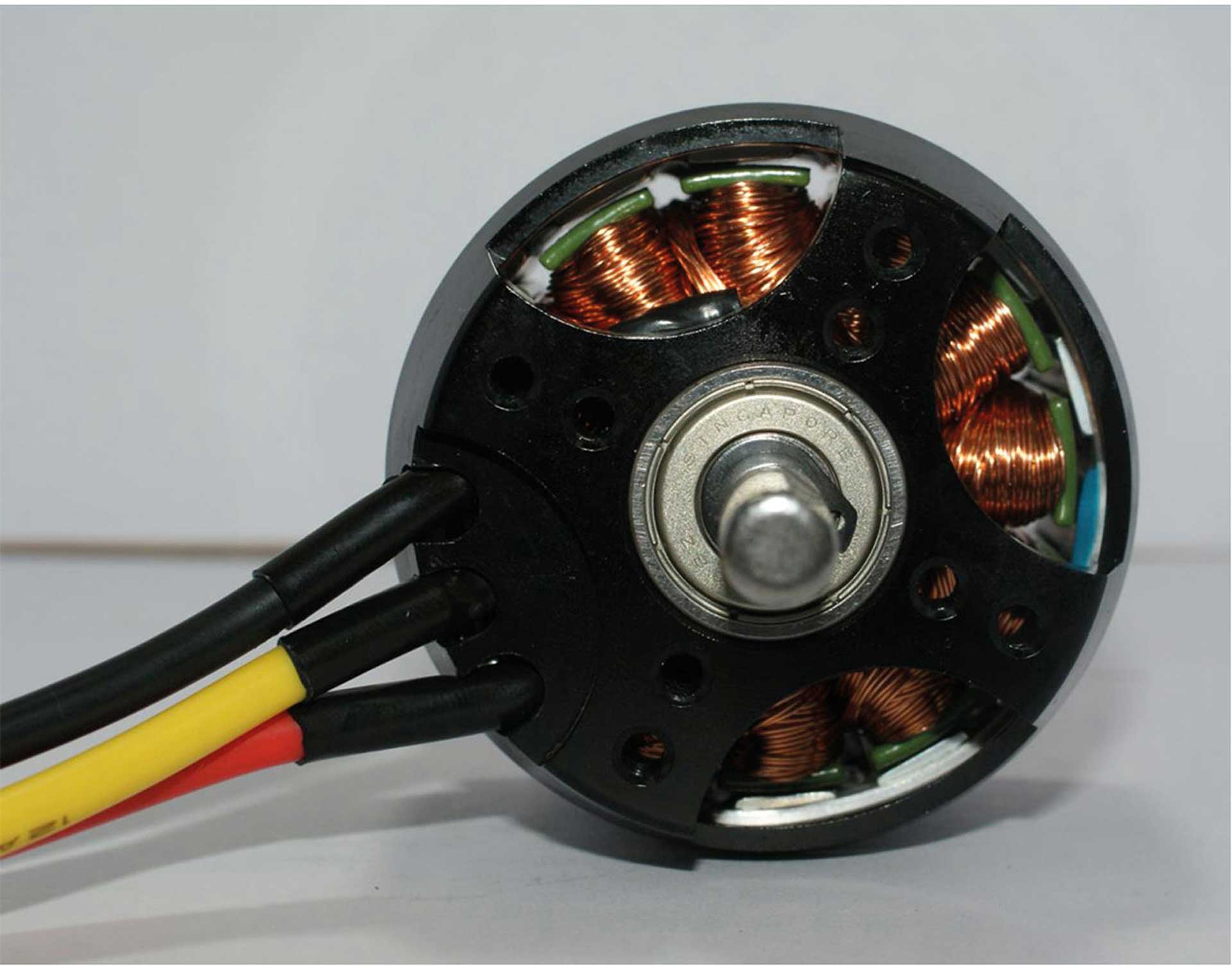

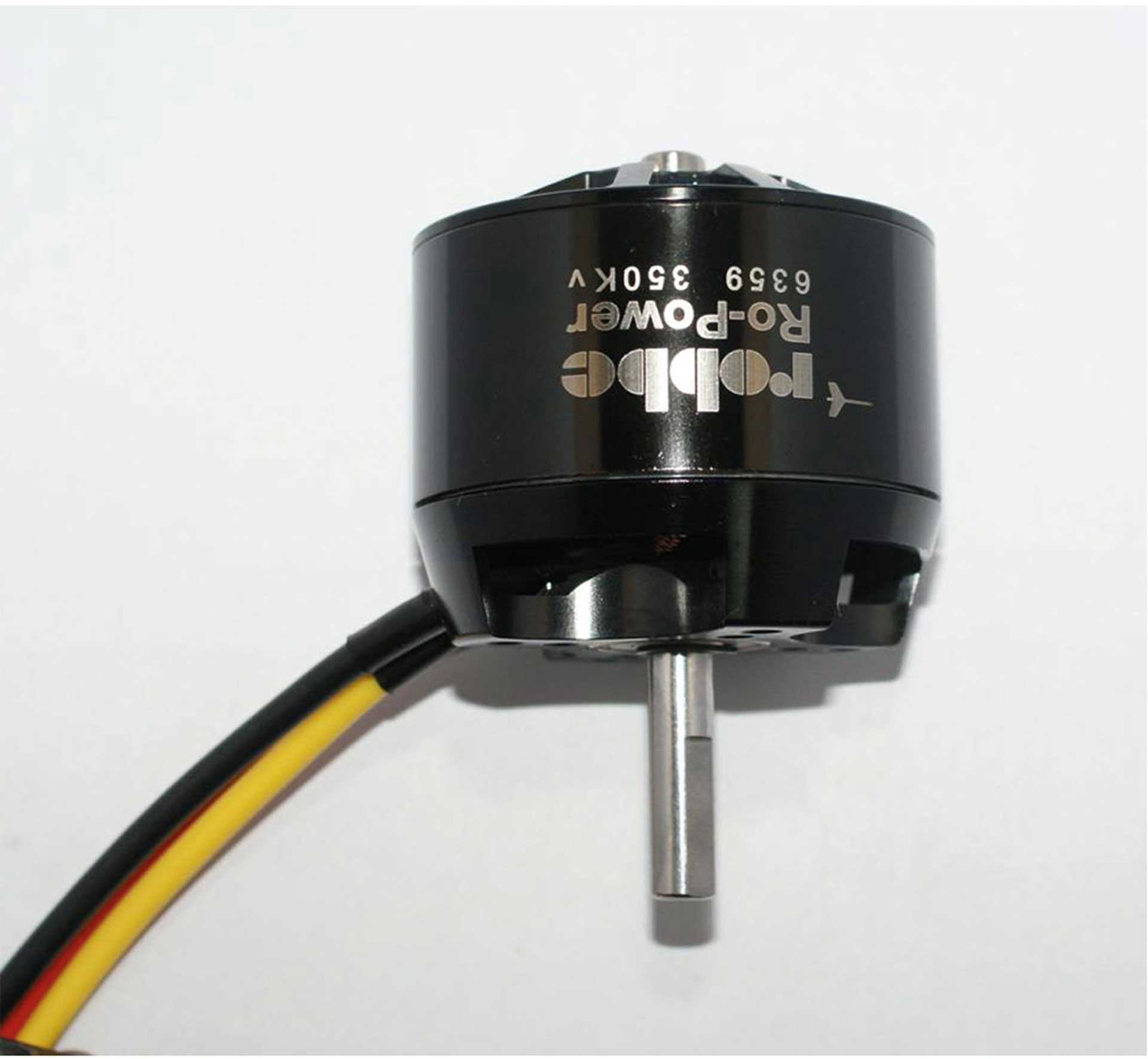

RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
- 6S 19x10" APC electric approx. 79A (only short time operation recommended!)
- 6S 18x11" Aeronaut CAM Carbon approx. 72A
- 8S 16x10" APC electric approx. 76A
- 8S 17x10" Aeronaut CAM Carbon approx. 76A (recommended for short-term use only!)
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
- The accessory set must be ordered separately (not included in the scope of delivery)!
Manual
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
Details of the manufacturer (information obligations under the GPSR Product Safety Regulation)
Modellbau Lindinger GmbH
Industriestraße 10
4565 Inzersdorf
ÖSTERREICH
Telefon: +43/7582/81313-0
[email protected]
