Robbe Modellsport RO-POWER TORQUE 3546 760 K/V BRUSHLESS MOTOR
Product number:
5808
GTIN/EAN:
9010189154006
Downloads
Description "Robbe Modellsport RO-POWER TORQUE 3546 760 K/V BRUSHLESS MOTOR"
Calculated measured values from eCalc:
Other measured values:

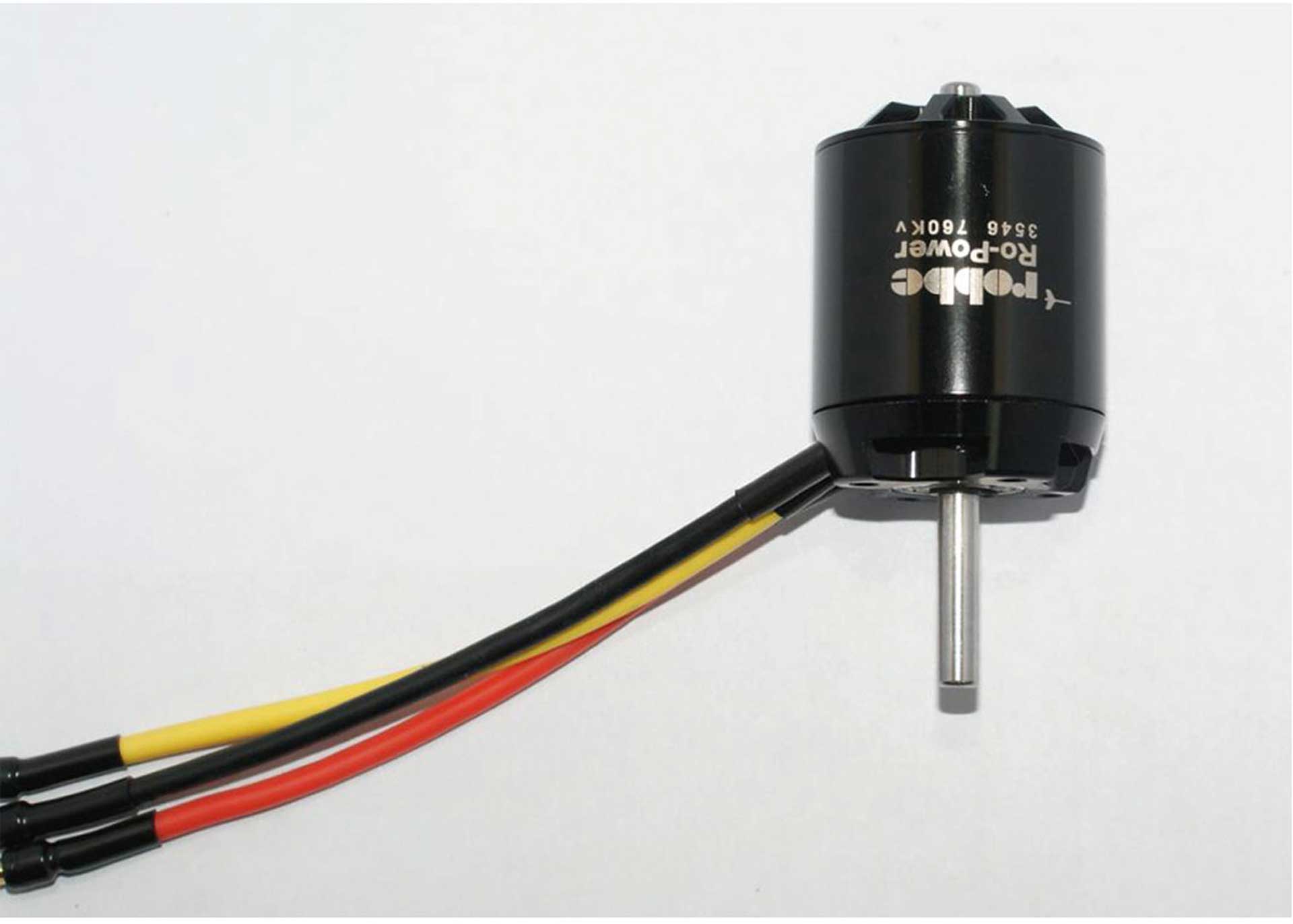

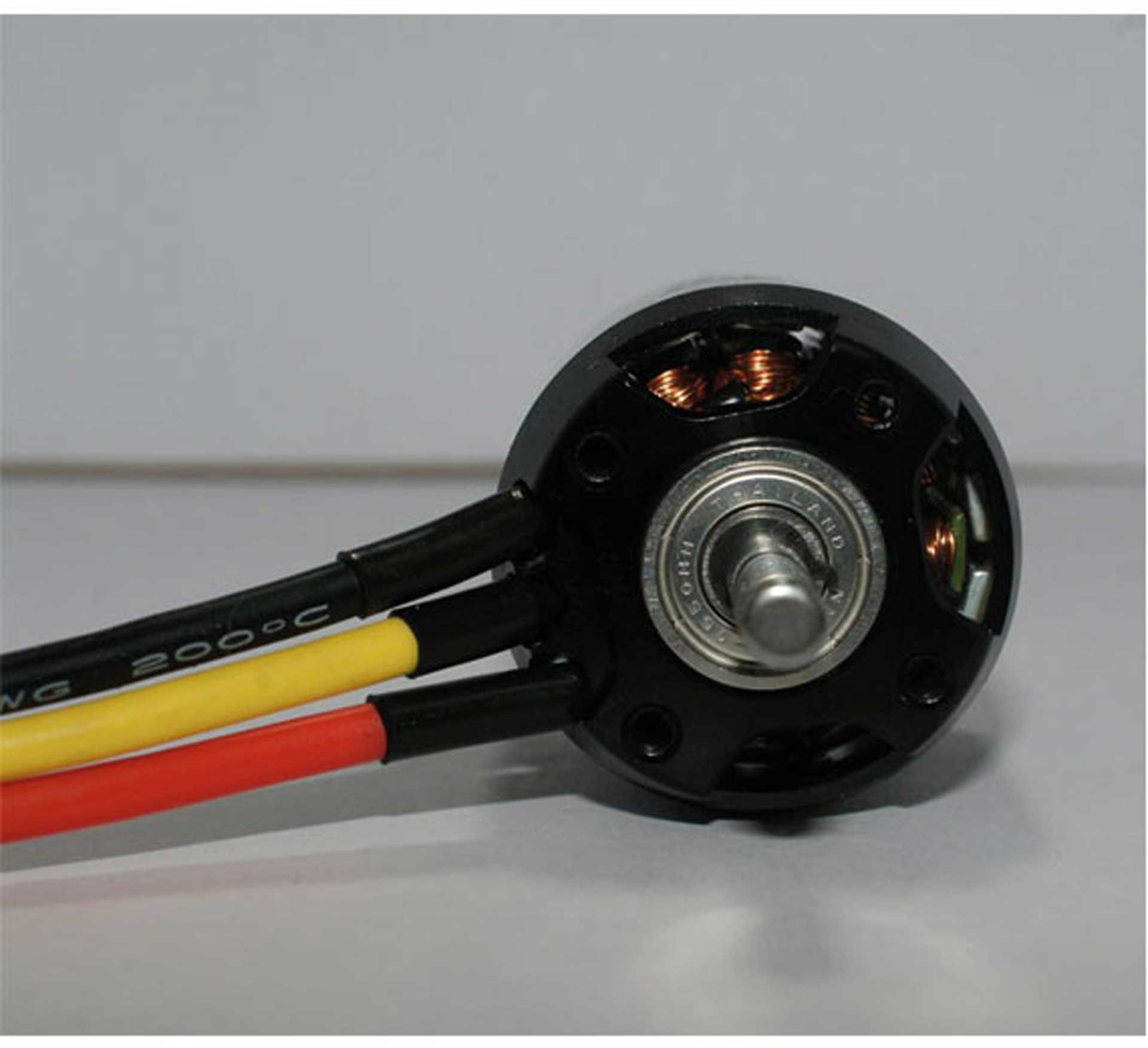

RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
- 3S 14x8.5 APC Electro ca.42A
- 3S 14x7" Robbe Dynamic Electro approx. 40A
- 3S 13x10" Aeronaut Cam Carbon approx. 39A
- 4S 12x8" APC electric approx. 43A
- 4S 12x7" Robbe Dynamic electric approx. 41A
- 4S 13x8" Robbe Electro approx. 54A
Other measured values:
- 4S 13x8" "Z" Prop Aeronaut with 38mm Z-Spinner approx. 34A
RO-Power Torque Brushless motors are lightweight, powerful external rotor motors with high torque and efficiency. They do not require a gearbox and are suitable for a wide range of applications. All components are manufactured on modern CNC machines from high-quality materials. Precise ball bearings increase the service life and minimize vibrations. We recommend the operation of RO-Power Torque motors with ROBBE Ro-Control speed controllers.
- The accessory set must be ordered separately (not included in the scope of delivery)!
Manual
RO-Power Torque-Anleitung-Manual-Manuel_DE-EN-FR_V9
Technical data
| Housing-Ø (mm): | 35 |
|---|---|
| Housing length (mm): | 46 |
| LiPo (S): | 3-4 |
| Shaft-Ø (mm): | 5 |
| Propeller: | 3S/14x8, 14x7, 13x10, 4S/ 12x8, 12x7, |
| Weight (g): | 177 |
| Examples of use: | Segler bis 3m / Monsun |
| RPM/V: | 760 |
| Engine-type: | External rotor |
| recom. Controller: | RO-CONTROL6-60 2-6S -60(80)A 5V/5A BEC |
| Stromaufnahme max. (A): | 43 |
| Weight category (g): | 100 to 250 |
