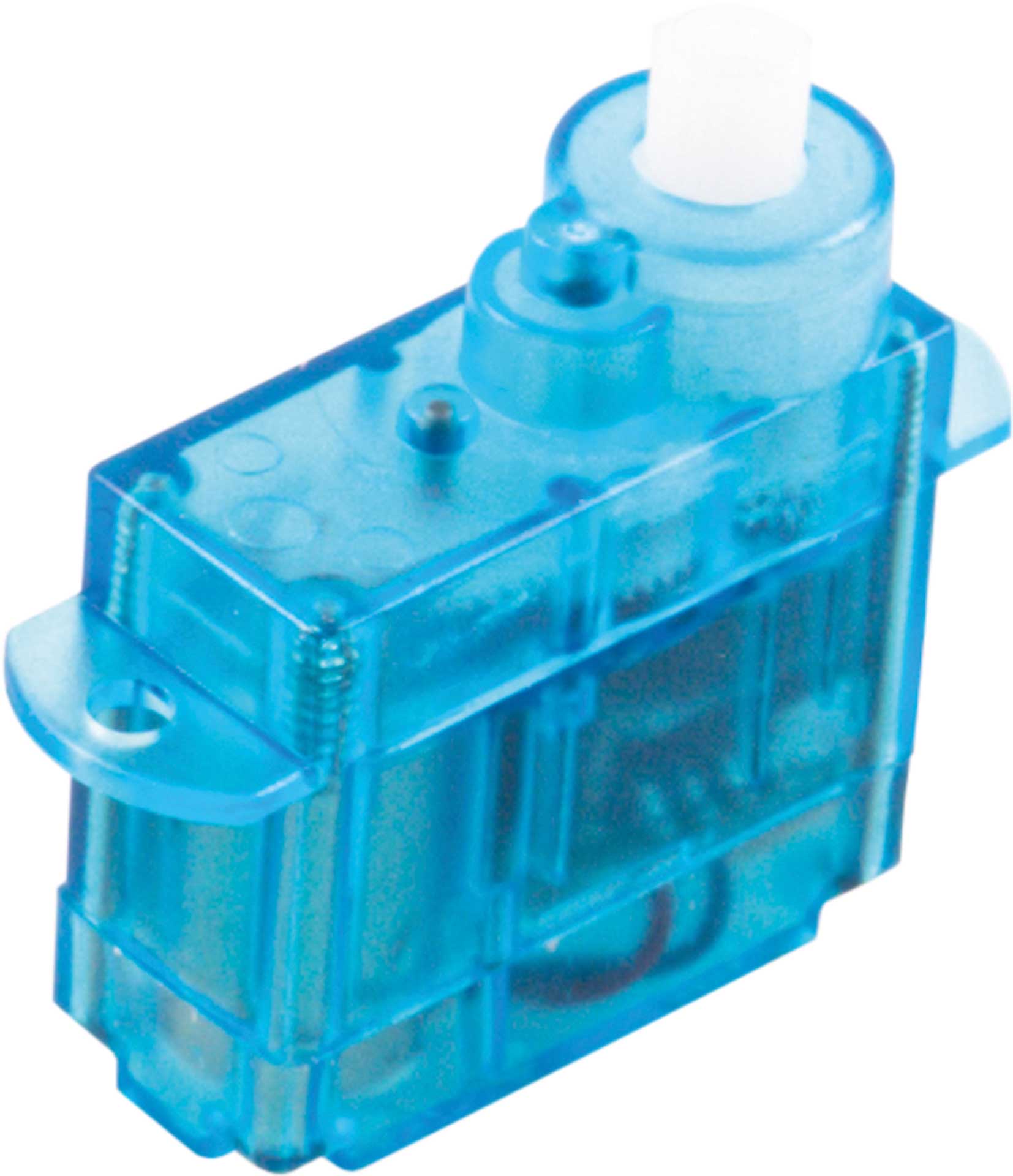

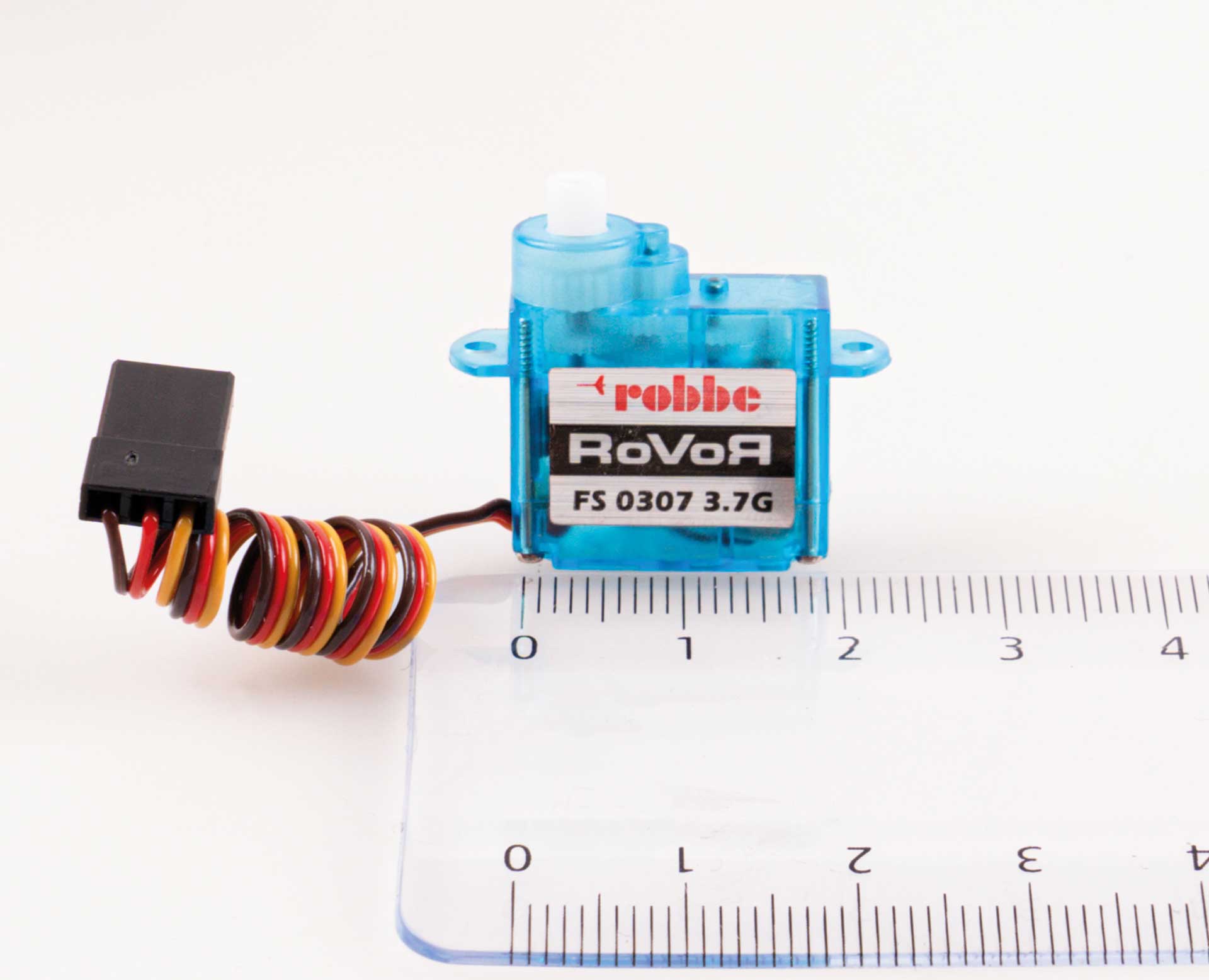

Robbe Modellsport ROVOR Servo FS 0307 3.7g
Product number:
S0307
| Bearing: | ohne |
|---|---|
| Servo Speed sec./60°: | 0,11, 0,13 |
| Servo Torque kg/cm: | 0,5, 0,9 |
| Gearbox Type: | Plastic |
| Weight (g): | 3,7 |
| Length (mm): | 19,8 |
| Width (mm): | 8,4 |
| Height (mm): | 19,8 |
| Servo-type: | Analog |
| Gear tooth: | 20Z/3,6mm |
| Opering voltage (V): | 4,8 - 6,0 |
| Torque kg/cm (4,8V): | 0,5 |
| Speed sec./60° (4,8V): | 0,13 |
| Torque kg/cm (6V): | 0,8 |
| Speed sec./60° (6V): | 0,11 |
Features:
- Type 7-9.9mm
- Analog (A) yes
- Motor 3 pole
- Speed 60° (sec) 4.8V 0.12
- Actuating force (KG) 4.8V 0.8
- Cable 150mm
- Connector JR/Futaba
- Teeth 20
- Operating temperature in °C -10° to +50° C
- Working angle 45° one-sided 500µsec
- Pulse (PWM) 1500 µsec
"ROVOR" High Perfromance Servo Serie
- Type 7-9.9mm
- Analog (A) yes
- Motor 3 pole
- Speed 60° (sec) 4.8V 0.12
- Actuating force (KG) 4.8V 0.8
- Cable 150mm
- Connector JR/Futaba
- Teeth 20
- Operating temperature in °C -10° to +50° C
- Working angle 45° one-sided 500µsec
- Pulse (PWM) 1500 µsec
"ROVOR" High Perfromance Servo Serie
