Product number: 33565
GTIN/EAN: 4013389479295


In stock. Usually ships within 1 business day.

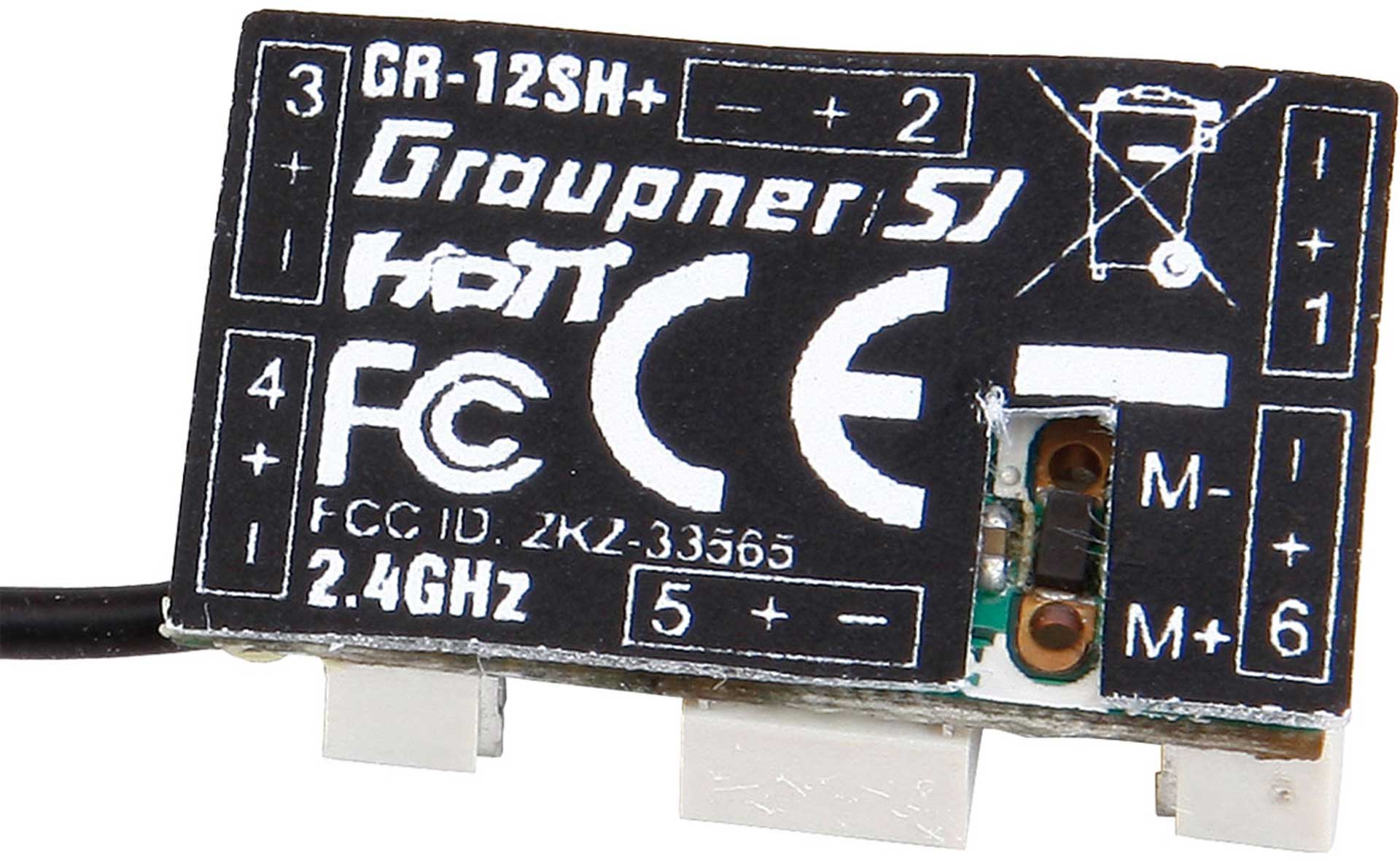

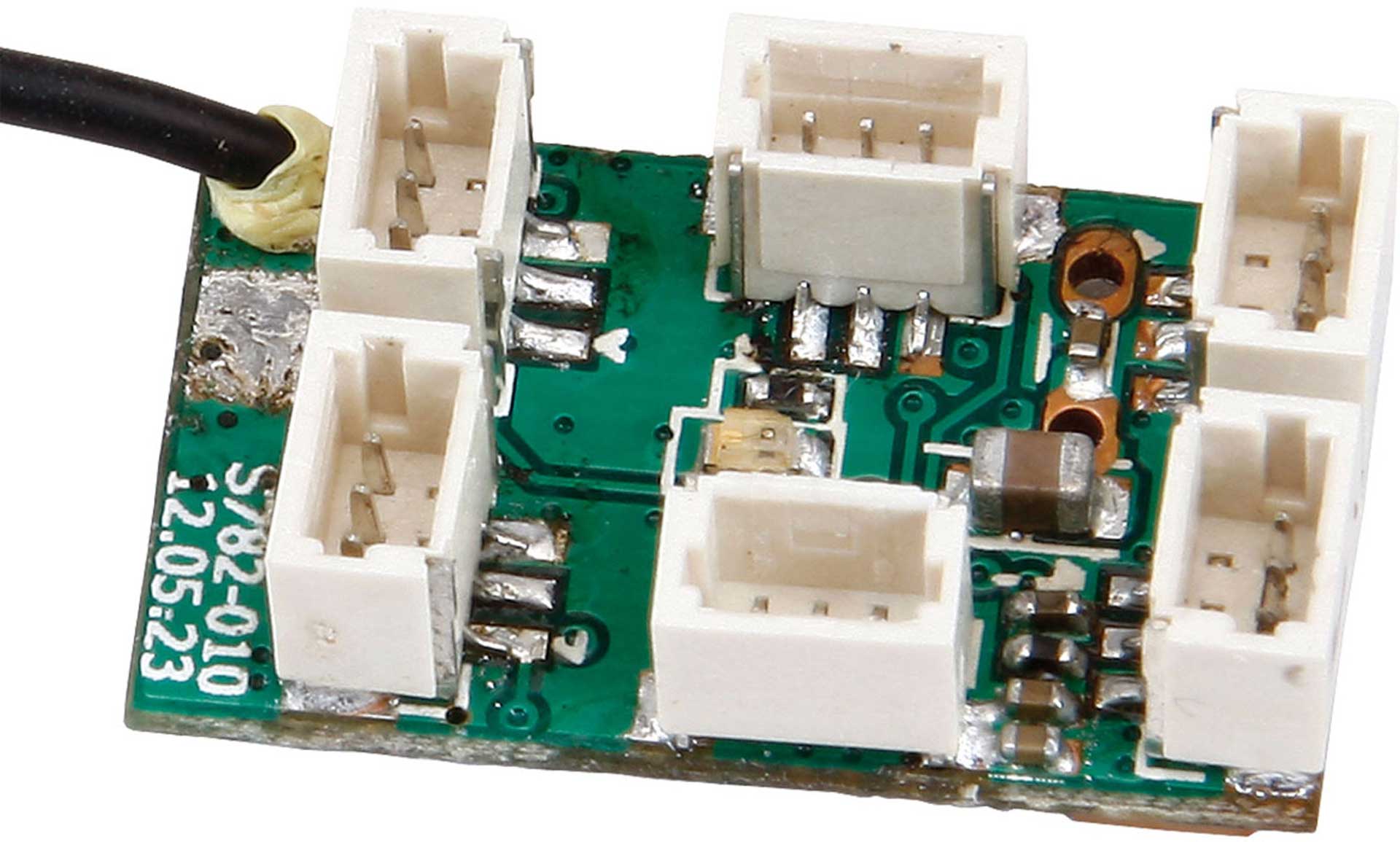

Our smallest 2.4GHz receiver, the Graupner GR-12 SH+ is a micro, 6 Channel receiver.

It is extremely lightweight – only 1.6 g – and its tiny footprint lends itself very well for small indoor flyers or micro flyer. The ultra-low voltage requirements – as low as 2.5 V – allows the GR-12 SH+ to operate on a single-cell LiPo battery making ideal for lightweight setups. This version, however, has an increased sensitivity input, increasing its operational range even further.

The GR-12 SH+ can provide a digital SUMH signal on channel 6 as well as direct motor control of a brushed motor (Max 2A) on channel 1. Like all Graupner HoTT receivers the GR-12 SH+ provides telemetry data like temperatures, receiver voltage and signal strength, giving you the information you need for a safe and secure flight. Comes equipped with an SH connector.

  • Up to 75 channel hopping for extreme operating reliability and immunity to external interference
  • Extremely compact and lightweight
  • Five built-in programmable mixers
  • Wireless setup and access technology
  • Fail Safe and Hold function
  • Low power consumption
  • Real-time wireless flight data recording
  • Ultra-fast re-binding with HoTT radio
  • Wide voltage ranges from 2.6V to 8.4V
  • Built-in telemetry for temperatures, receiver voltage and receiver strength monitoring
  • SUM digital signal output

HoTT- is the synthesis of know-how, engineering and worldwide tests by professional pilots. A 2.4 GHz system that points the way for the future of RC model making.
HoTT- Hopping Telemetry Transmission is safety with up to 75 channels
HoTT- uses frequency hopping spread spectrum technology. (FHSS)
HoTT- offers integrated telemetry in real time (expandable).
HoTT- is fully programmable with the help of the Smartbox.

System Features:
- Simple and extremely fast binding
- Range test and undervoltage warning function
- Extremely wide receiver operating voltage range from 3.6 V to 8.4 V (functional up to 2.5 V)
- Failsafe, free channel mapping
- Binding of any number of receivers for channel expansion (max. 32 channels)
- Up to 4 servos can be controlled simultaneously in blocks with a servo cycle time of 10 ms (Digital servos only!)
- Maximum noise immunity due to optimized frequency hopping and wide channel spread
- Extremely fast rebinding, even at maximum distance
- Telemetry evaluation in real time
- Future-proof due to update capability via USB interface

Technical data
Channels: 6
L/W/H (mm): 20/12/7
Weight (g): 1,5
Graupner, based in Kirchheim, Germany, was founded by the family Graupner and, up until March 2013, operated under the third Graupner generation from Stefan Graupner. In March 2013, the company was purchased by the manufacturer of Graupner HoTT RC Transmitter Systems. Graupner covers a large RC assortment including RC Cars and Trucks (GM), Helicopters, Airplanes, RC Electronics (HoTT 2,4GHZ), Chargers, RC Glow-Powered Motors (OS) as well as a large variety of Electric-Powered Brushless Motors. Graupner supplies around 2000 retailers throughout the world.
