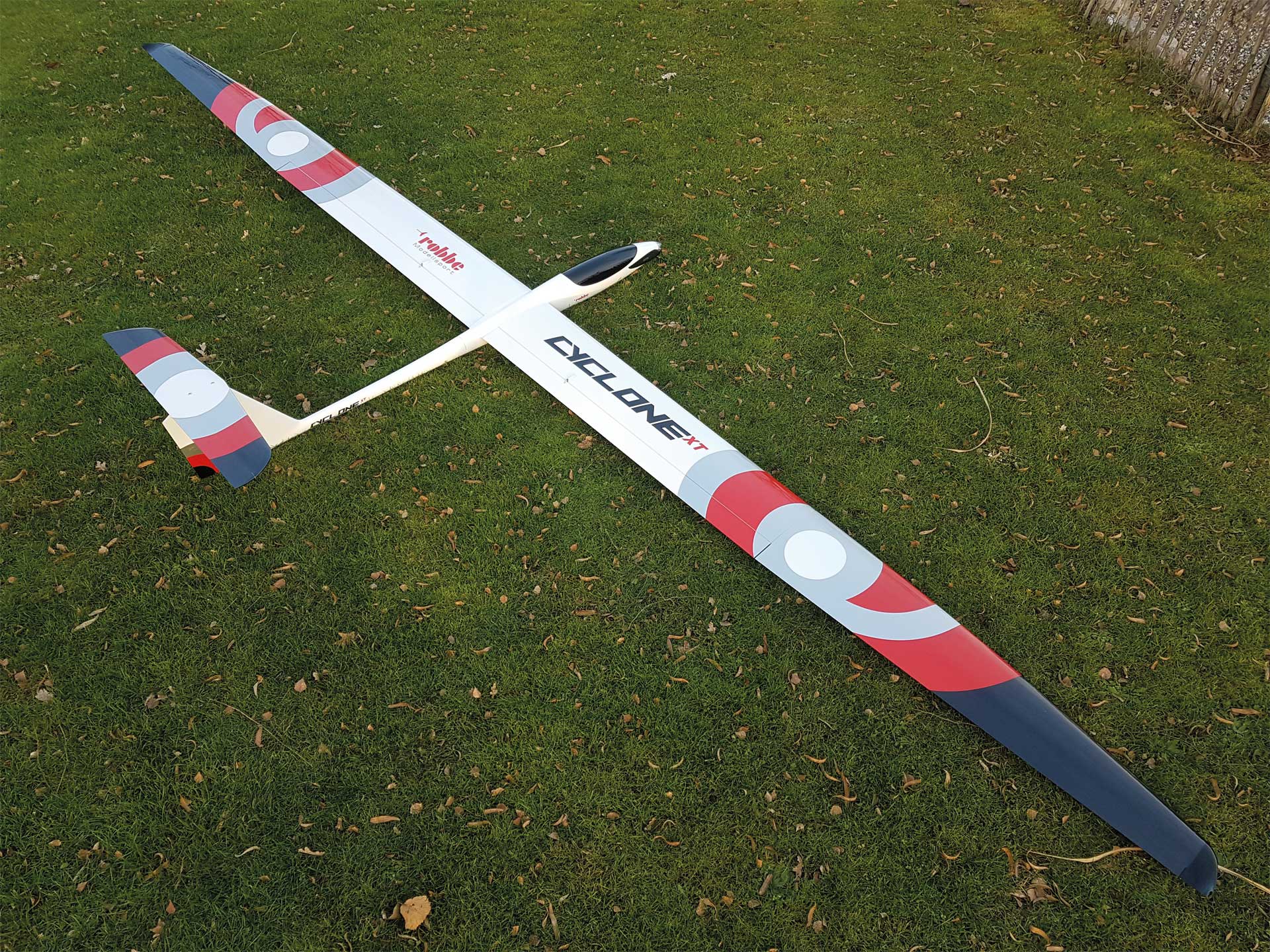

Robbe Modellsport Cyclone XT 6,2m PNP w. GRP FUSELAGE 4-piece wing with abachi planking
Content: 0.2 kg (€109.95* / 1 kg)
- Built-in Ro-Power Torque LS 6330-15 for 8S operation
- 50mm aluminum spinner with 20x8 CfK prop
- Ready built in servos FS-0150 HV BB MG
- Ready built in 6-pin wing connectors in mounting frame
- Pre-installed multilock system
- Two-piece fuselage made of GRP/Kevlar CFK reinforced
- Abachi planked wings, GRP/CFRP reinforced
- Ready covered with ORACOVER
- Assembly instructions in German/English/French
| Wing-span (mm): | 6200 |
|---|---|
| Flight weight approx. (g): | 11400 |
| Control: | Ailerons, Elevator, Flaps, Motor Powered, Rudder |
| Manufacturer: | Robbe |
| Fuselage: | Carbon/FiberGlass |
| Wings: | Styro/Fiberglass/Abachi |
| Rec. engine: | Ro-Power Torque LS 6330-15 |
| Rec. Battery: | 8S/5000-7000mAh LiXX |
| Version: | PNP - PLUG N PLAY |
| Airfoil: | HQW |
| Flight Skill: | Professional |
| Build Skill: | Advanced |
| Drive Type: | Electric |
The outer wing design, electrical wing mating using MPX connectors in mounting frames and the new LS 6330-15 long shaft drive motor are the main features of the new Cyclone XT, along with the increased wingspan. The canopy latch has been moved to the rear under the wing/fuselage moldings as is common with large scale model gliders.
The successful HQ/W airfoil has been left in place. It runs from an HQ/W-2.5/12 at the root rib to an HQ/W-2.5/11 in the center and finishes at the winglet with an HQ/W-3/10.5. This is an excellent way to fly extended thermal flights, as this is the CYCLONE XT's profession. The flight characteristics are as usual good-natured and quiet.
Features:
- New Ro-Power Torque LS 6330-15 drive for 8S LiPo (PNP version only).
- Two-piece fuselage made of GFRP/Kevlar reinforced with CFRP
-Wings completely covered with abachi for high compressive strength
-Ready covered with ORACOVER®
-Four-part wing, separable
-Wings pluggable with MPX connectors in mounting frame for electrical connection (PNP version only)
-Solid 14x500mm round steel mating of the inner surfaces, 12x375mm carbon mating for the outer wings
-Middle wings on the upper side completely underlaid with 200g carbon fabric, underside 80g glass fabric
-Outer wings completely underlaid with 80g glass mat

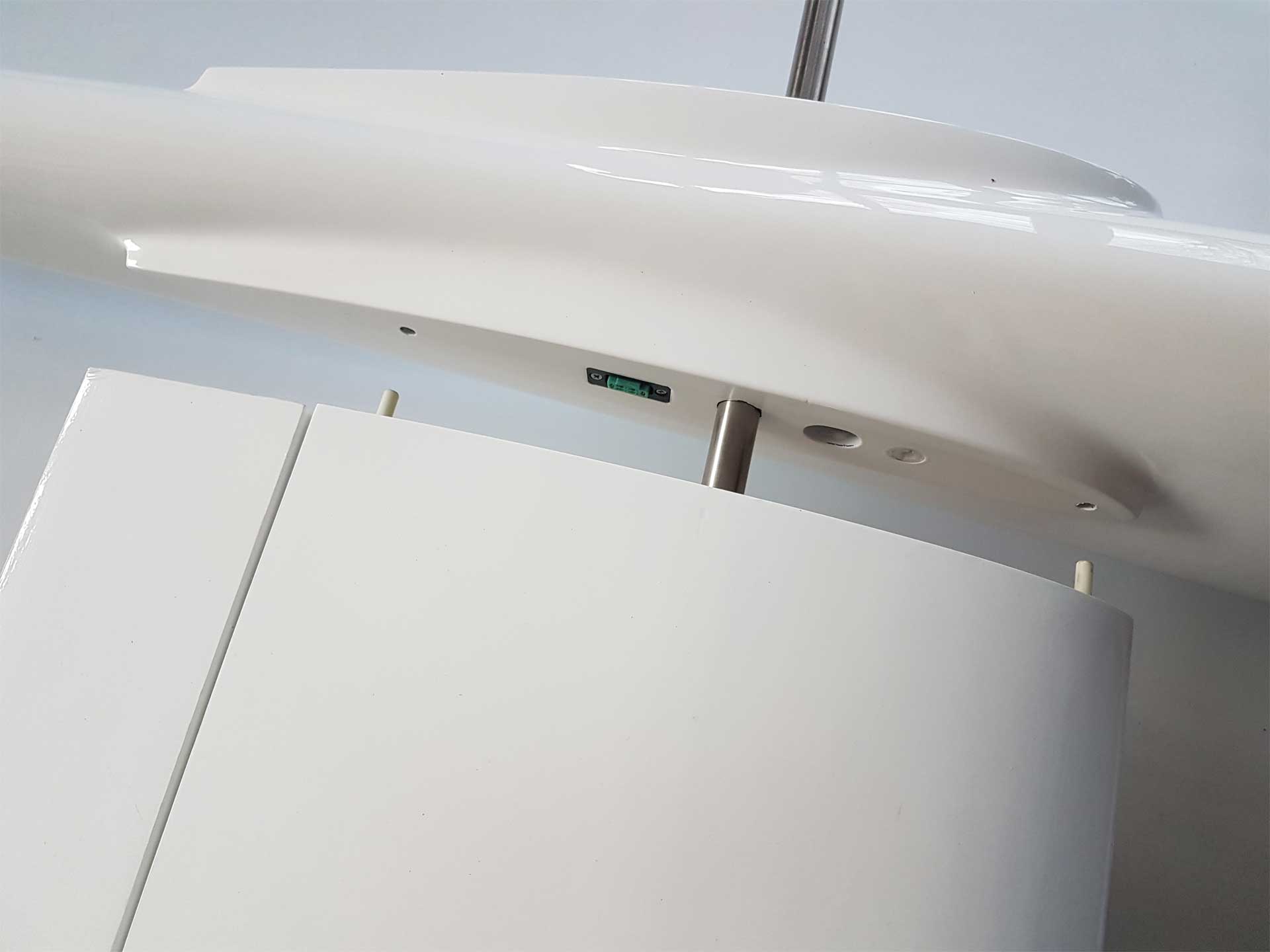

-New canopy lock under wing
-High quality M3 linkage accessories Made in Germany
- Stable elevator linkage with 5/3 mm CFRP tube and M3 clevises
-Reinforced tail construction
-Continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
-Precisely fitted anti-twist devices in all wing sections
-High degree of prefabrication
